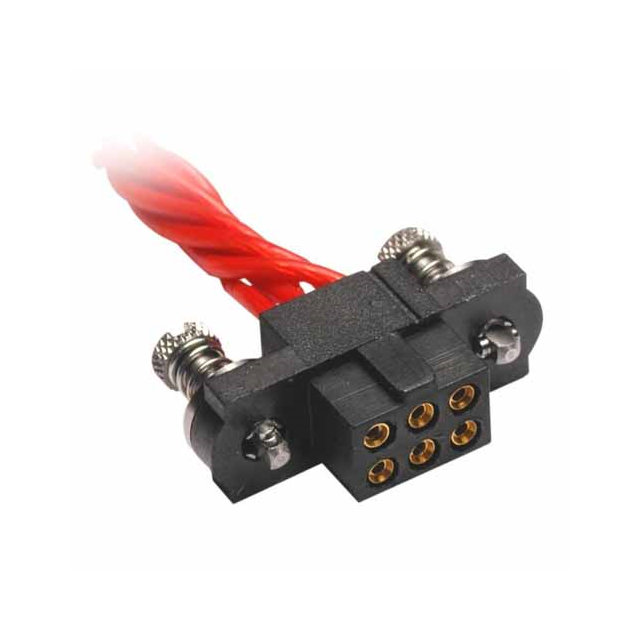

M80-4D15042FC

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Plating Thickness :

11μin

Filter Feature :

No

DIN Conformance :

No

Number of Rows :

2

Factory Lead Time :

9 Weeks

Wire Gauge :

22 AWG

Connector Type :

Receptacle

Row Spacing :

0.079 (2.00mm)

Packaging :

Bulk

Contact Material :

BERYLLIUM COPPER

Insulation Resistance :

100000000Ohm

Series :

Datamate J-Tek

JESD-609 Code :

e3

Pbfree Code :

yes

Wire Type :

Discrete

Option :

GENERAL PURPOSE

Contact Type :

Female Socket

Mounting Option 1 :

LOCKING

Cable Termination :

Crimp

Color :

Black

Reference Standard :

UL

Feature :

Jackscrews, Polarizing Key

UL Flammability Code :

94V-0

Contact Finish :

Gold

Mounting Type :

Free Hanging (In-Line)

MIL Conformance :

No

Operating Temperature (Min) :

-55°C

Number of Positions :

50

Pitch :

0.079 2.00mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

No

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Reliability :

COMMERCIAL

Contact Finish Thickness :

11.8μin 0.30μm

Total Number of Contacts :

50

Mixed Contacts :

No

Fastening Type :

Screw Lock

RoHS Status :

ROHS3 Compliant
