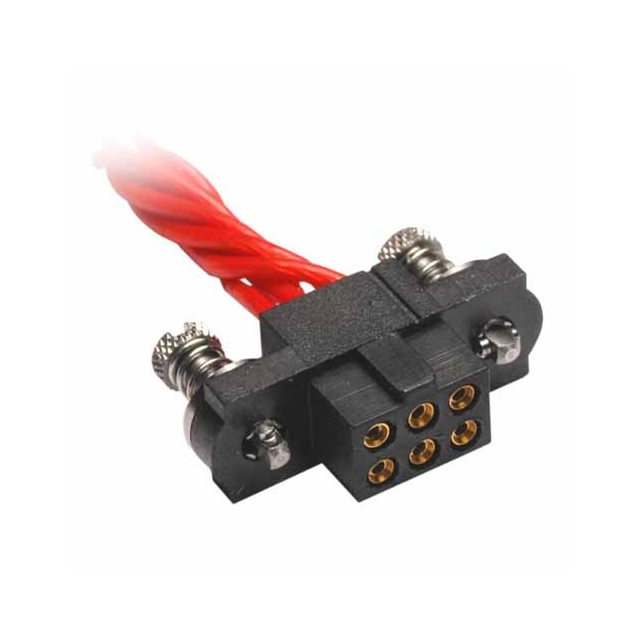

M80-4C11605FC

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e4

DIN Conformance :

No

HTS Code :

8536.69.40.40

Connector Type :

Receptacle

Contact Finish :

Gold

IEC Conformance :

No

Number of Rows :

2

Fastening Type :

Screw Lock

Insulation Resistance :

100000000Ohm

Wire Type :

Discrete

Row Spacing :

0.079 (2.00mm)

Filter Feature :

No

Feature :

Jackscrews, Polarizing Key

Total Number of Contacts :

16

Pitch :

0.079 2.00mm

Reference Standard :

UL

Contact Type :

Female Socket

Operating Temperature (Min) :

-55°C

Additional Feature :

PANEL MOUNTABLE

Pbfree Code :

yes

Cable Termination :

Crimp

Color :

Black

Contact Design :

LOOSE

Wire Gauge :

24-28 AWG

Number of Positions :

16

Mounting Type :

Free Hanging (In-Line)

Option :

GENERAL PURPOSE

Rated Current (Signal) :

3A

Reliability :

COMMERCIAL

Contact Material :

BERYLLIUM COPPER

MIL Conformance :

No

Factory Lead Time :

9 Weeks

Mixed Contacts :

No

Polarization Key :

POLARIZED HOUSING

Contact Finish Thickness :

11.8μin 0.30μm

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Packaging :

Bulk

Mounting Option 1 :

LOCKING

Series :

Datamate J-Tek

RoHS Status :

ROHS3 Compliant

UL Flammability Code :

94V-0

ECCN Code :

EAR99
