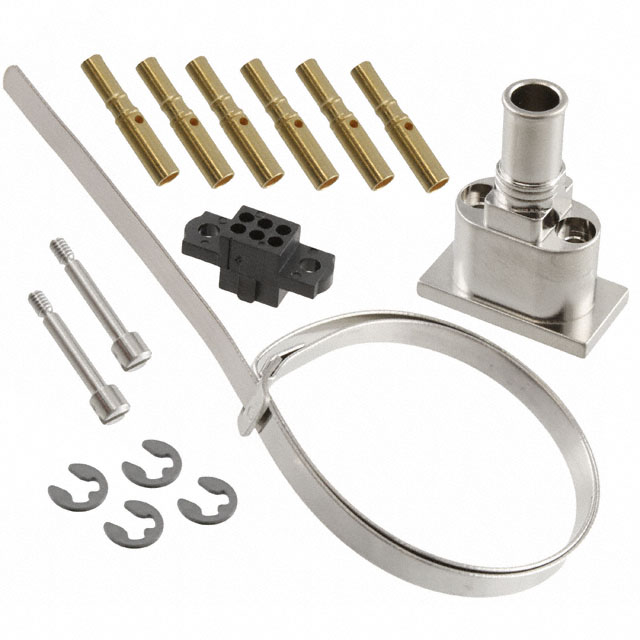

M80-4C10605S1

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Mixed Contacts :

No

Total Number of Contacts :

6

Reference Standard :

UL

Wire Type :

Discrete

Current Rating :

3A

JESD-609 Code :

e4

Operating Temperature (Min) :

-55°C

Pbfree Code :

yes

Packaging :

Bulk

Wire Gauge (Min) :

24 AWG

Connector Type :

Receptacle

MIL Conformance :

No

Rated Current (Signal) :

3A

Number of Rows :

2

Feature :

Jackscrews, Shielded

Wire Gauge :

24-28 AWG

IEC Conformance :

No

Housing Material :

Polyphenylene

Radiation Hardening :

No

Published :

2010

Wire Gauge (Max) :

28 AWG

Contact Finish :

Gold

Pitch :

0.079 2.00mm

Option :

GENERAL PURPOSE

Factory Lead Time :

7 Weeks

Contact Material :

Copper

Series :

Datamate S-Tek

UL Flammability Code :

94V-0

Contact Gender :

FEMALE

Contact Finish Thickness :

11.8μin 0.30μm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

DIN Conformance :

No

Filter Feature :

No

Body Depth :

0.591 inch

Body Length or Diameter :

0.795 inch

Mount :

Free Hanging

Number of Positions :

6

Color :

Black

REACH SVHC :

No SVHC

Insulation Resistance :

100000000Ohm

RoHS Status :

ROHS3 Compliant

Reliability :

COMMERCIAL

Voltage - Rated :

360V

ECCN Code :

EAR99

Mounting Type :

Free Hanging (In-Line)

Cable Termination :

Crimp

Row Spacing :

0.079 (2.00mm)

Contact Type :

Female Socket
