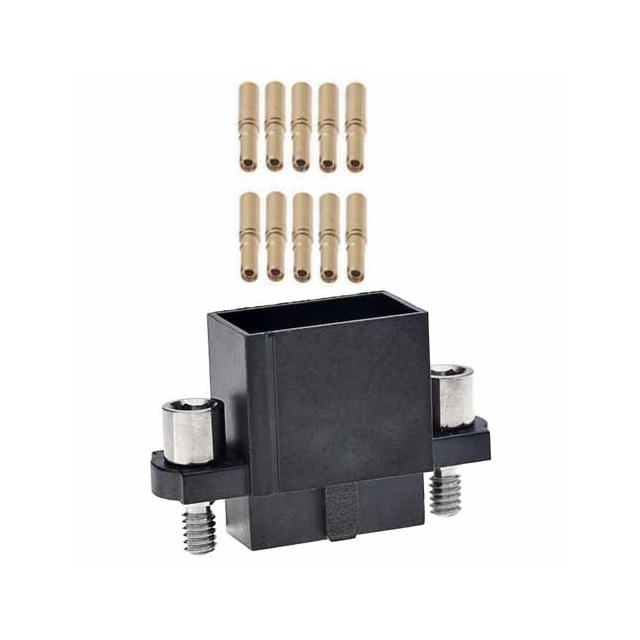

M80-4861842

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Reference Standard :

UL

Total Number of Contacts :

18

Operating Temperature (Min) :

-55°C

Cable Termination :

Crimp

Pbfree Code :

yes

Connector Type :

Receptacle

Option :

GENERAL PURPOSE

Mounting Type :

Free Hanging (In-Line)

Contact Type :

Female Socket

Number of Rows :

2

UL Flammability Code :

94V-0

Body Depth :

0.494 inch

Reliability :

COMMERCIAL

Pitch :

0.079 2.00mm

Series :

Datamate J-Tek

HTS Code :

8536.69.40.40

DIN Conformance :

No

Contact Finish :

Gold

Row Spacing :

0.079 (2.00mm)

RoHS Status :

ROHS3 Compliant

Contact Design :

LOOSE

JESD-609 Code :

e3

Body/Shell Style :

PLUG

Additional Feature :

COMPATIBLE CONTACT: M80-0130001

Wire Type :

Discrete

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Fastening Type :

Screw Lock

Polarization Key :

POLARIZED HOUSING

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Bulk

Feature :

Jackscrews, Polarizing Key, Potting Wall

Factory Lead Time :

9 Weeks

Mixed Contacts :

No

Number of Positions :

18

Wire Gauge :

24-28 AWG

Durability :

500 Cycles

Rated Current (Signal) :

3A

IEC Conformance :

No

Filter Feature :

No

MIL Conformance :

No

Contact Material :

BERYLLIUM COPPER

Color :

Black

Contact Finish Thickness :

11.8μin 0.30μm

Insulation Resistance :

100000000Ohm
