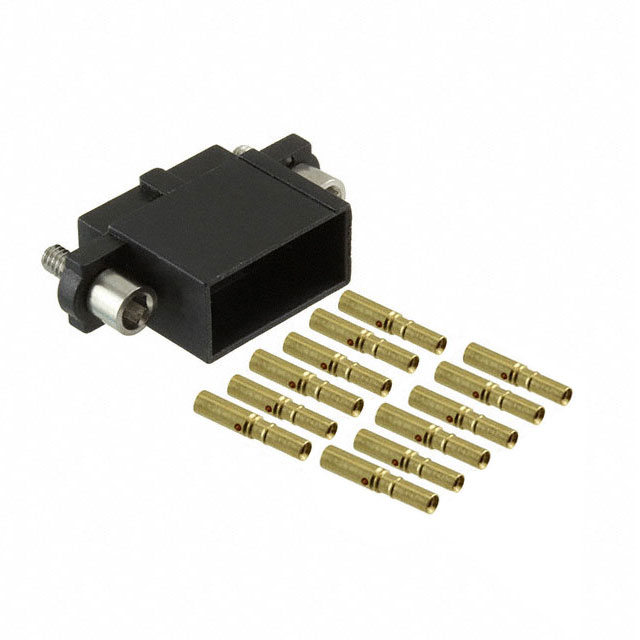

M80-4861205

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Number of Positions :

12

Factory Lead Time :

13 Weeks

Packaging :

Bulk

Cable Termination :

Crimp

JESD-609 Code :

e4

Mount :

Free Hanging

Wire Gauge (Max) :

28 AWG

Insulation Resistance :

100000000Ohm

Reference Standard :

UL

Body Depth :

0.494 inch

Additional Feature :

COMPATIBLE CONTACT: M80-0130005

Contact Finish :

Gold

HTS Code :

8536.69.40.40

Wire Type :

Discrete

Feature :

Jackscrews, Polarizing Key, Potting Wall

Pbfree Code :

yes

Body/Shell Style :

PLUG

Mixed Contacts :

No

IEC Conformance :

No

Reach Compliance Code :

not_compliant

ECCN Code :

EAR99

Reliability :

COMMERCIAL

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Type :

Receptacle

Total Number of Contacts :

12

DIN Conformance :

No

RoHS Status :

ROHS3 Compliant

Polarization Key :

POLARIZED HOUSING

Series :

Datamate J-Tek

Contact Finish Thickness :

11.8μin 0.30μm

UL Flammability Code :

94V-0

Contact Type :

Female Socket

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Row Spacing :

0.079 (2.00mm)

Mounting Type :

Free Hanging (In-Line)

Contact Gender :

FEMALE

Wire Gauge :

24-28 AWG

REACH SVHC :

No SVHC

Fastening Type :

Screw Lock

Pitch :

0.079 2.00mm

Durability :

500 Cycles

Body Length or Diameter :

0.866 inch

Rated Current (Signal) :

3A

MIL Conformance :

No

Color :

Black

Number of Rows :

2

Wire Gauge (Min) :

24 AWG

Published :

2009

Operating Temperature (Min) :

-55°C

Filter Feature :

No

Contact Material :

Copper
