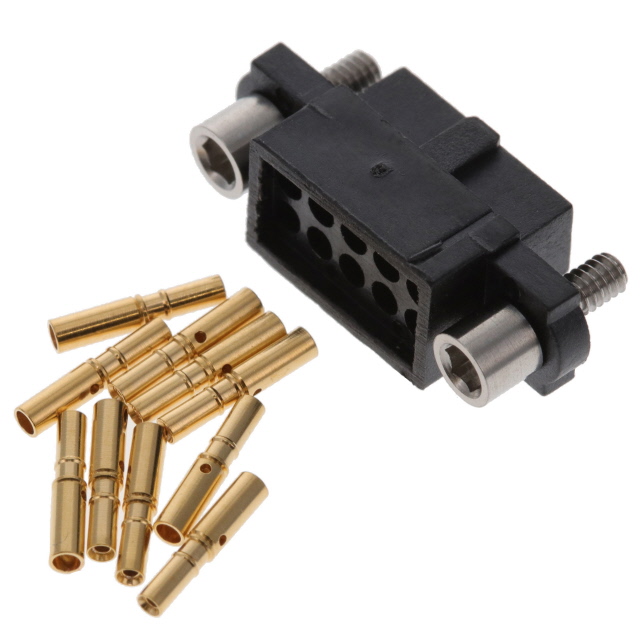

M80-4861005A

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Contact Finish :

Gold

Body Depth :

0.337 inch

Wire Gauge :

24-28 AWG

Cable Termination :

Crimp

Factory Lead Time :

13 Weeks

HTS Code :

8536.69.40.40

Number of Positions :

10

Contact Design :

LOOSE

Reliability :

COMMERCIAL

Contact Type :

Female Socket

Packaging :

Bulk

IEC Conformance :

No

Pitch :

0.079 2.00mm

RoHS Status :

ROHS3 Compliant

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Series :

Datamate J-Tek

Rated Current (Signal) :

3A

Total Number of Contacts :

10

UL Flammability Code :

94V-0

Filter Feature :

No

Body/Shell Style :

PLUG

Additional Feature :

COMPATIBLE CONTACT: M80-0130005

Row Spacing :

0.079 (2.00mm)

Feature :

Jackscrews, Polarizing Key, Potting Wall

Body Length or Diameter :

0.787 inch

MIL Conformance :

No

Wire Type :

Discrete

Published :

2014

Contact Material :

BERYLLIUM COPPER

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Fastening Type :

Screw Lock

Color :

Black

Connector Type :

Receptacle

Option :

GENERAL PURPOSE

Contact Finish Thickness :

11.8μin 0.30μm

Mixed Contacts :

No

Pbfree Code :

yes

Reference Standard :

UL

ECCN Code :

EAR99

Operating Temperature (Min) :

-55°C

Polarization Key :

POLARIZED HOUSING

Mounting Type :

Free Hanging (In-Line)

DIN Conformance :

No

Number of Rows :

2

JESD-609 Code :

e4

Durability :

500 Cycles
