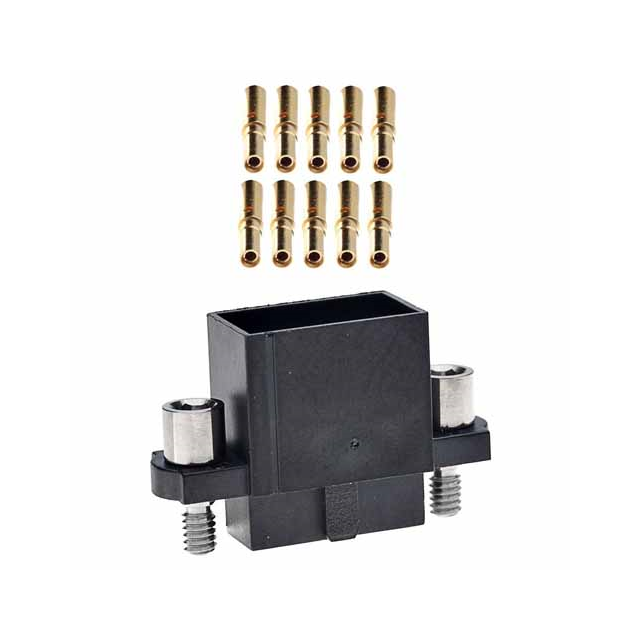

M80-4851805

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

MIL Conformance :

No

JESD-609 Code :

e4

DIN Conformance :

No

Total Number of Contacts :

18

Operating Temperature (Min) :

-55°C

HTS Code :

8536.69.40.40

Number of Positions :

18

Contact Finish :

Galvanized

Feature :

Jackscrews, Polarizing Key, Potting Wall

Row Spacing :

0.079 (2.00mm)

Wire Gauge :

22 AWG

Cable Termination :

Crimp

Additional Feature :

COMPATIBLE CONTACT: M80-0110005

RoHS Status :

ROHS3 Compliant

Insulation Resistance :

100000000Ohm

Reach Compliance Code :

not_compliant

Connector Type :

Receptacle

ECCN Code :

EAR99

Wire/Cable Gauge :

22 AWG

Factory Lead Time :

12 Weeks

Contact Finish Thickness :

11.8μin 0.30μm

Pitch :

0.079 2.00mm

Contact Plating :

Gold

Color :

Black

Series :

Datamate J-Tek

Fastening Type :

Screw Lock

Contact Material :

BERYLLIUM COPPER

Contact Design :

LOOSE

Published :

2013

UL Flammability Code :

94V-0

Reliability :

COMMERCIAL

Mount :

Free Hanging

Option :

GENERAL PURPOSE

Packaging :

Bulk

Mixed Contacts :

No

Filter Feature :

No

Contact Type :

Female Socket

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Rated Current (Signal) :

3A

Durability :

500 Cycles

Body/Shell Style :

PLUG

Reference Standard :

UL

Number of Rows :

2

Wire Type :

Discrete

Mounting Type :

Free Hanging (In-Line)

Polarization Key :

POLARIZED HOUSING

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

No
