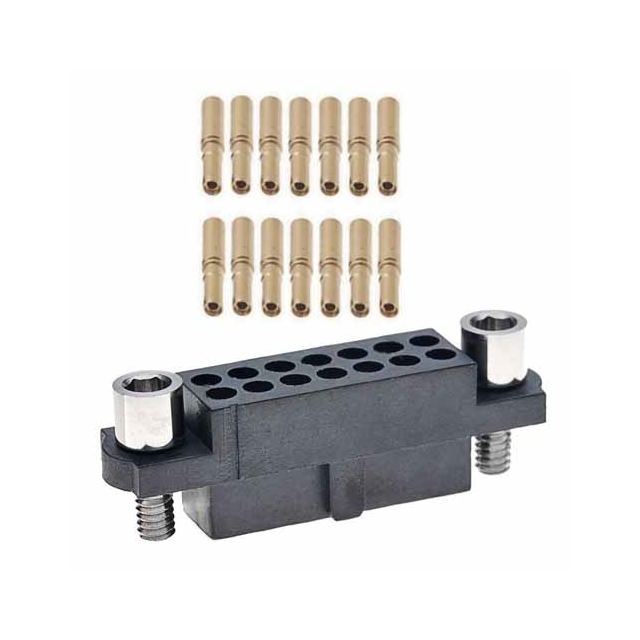

M80-4814005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

IEC Conformance :

No

Number of Rows :

2

Connector Type :

Receptacle

Plating Thickness :

11μin

Published :

2011

Reliability :

COMMERCIAL

Contact Material :

NOT SPECIFIED

Feature :

Jackscrews

UL Flammability Code :

94V-0

Option :

GENERAL PURPOSE

Cable Termination :

Crimp

Reference Standard :

UL

Packaging :

Tube

Contact Finish :

Gold

Wire Type :

Discrete

MIL Conformance :

No

Total Number of Contacts :

40

Body/Shell Style :

PLUG

Mixed Contacts :

No

Additional Feature :

COMPATABLE CONTACT: M80-0130005, PANEL MOUNTABLE

DIN Conformance :

No

Number of Positions :

40

Body Length or Diameter :

1.969 inch

Contact Type :

Female Socket

Insulation Resistance :

100000000Ohm

Insulation Diameter-Min :

0.043 inch

Durability :

500 Cycles

Color :

Black

Series :

Datamate J-Tek

Mounting Type :

Free Hanging (In-Line)

Filter Feature :

No

RoHS Status :

ROHS3 Compliant

Pitch :

0.079 2.00mm

Contact Finish Thickness :

11.8μin 0.30μm

Reach Compliance Code :

not_compliant

ECCN Code :

EAR99

Pbfree Code :

yes

Wire Gauge :

24-28 AWG

JESD-609 Code :

e4

Operating Temperature (Min) :

-55°C

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Row Spacing :

0.079 (2.00mm)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
