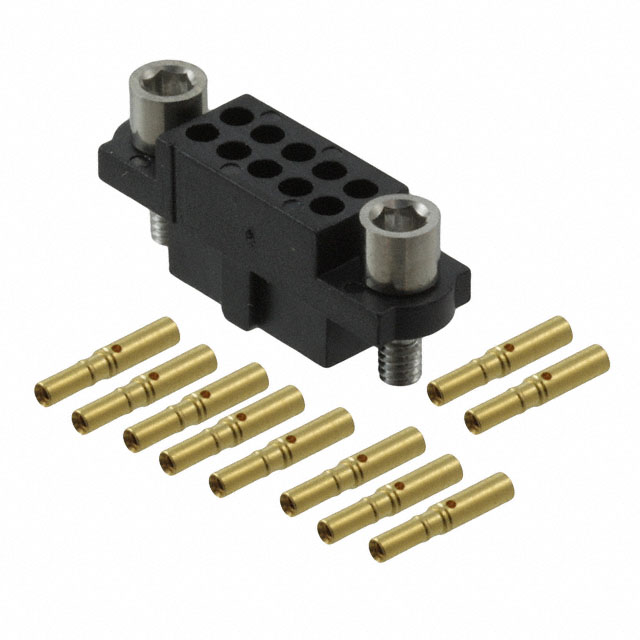

M80-4811005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Housing Material :

Polyphenylene

Orientation :

Straight

Contact Resistance :

25mOhm

Reference Standard :

UL

Wire Gauge (Min) :

24 AWG

Contact Type :

Female Socket

Max Operating Temperature :

125°C

Total Number of Contacts :

10

UL Flammability Code :

94V-0

Wire Gauge :

24-28 AWG

Pitch :

0.079 2.00mm

Pbfree Code :

yes

Number of Rows :

2

Packaging :

Bulk

Contact Material :

Copper

Wire Gauge (Max) :

28 AWG

MIL Conformance :

No

Min Operating Temperature :

-55°C

Contact Finish Thickness :

11.8μin 0.30μm

DIN Conformance :

No

Series :

Datamate J-Tek

Row Spacing :

0.079 (2.00mm)

Length :

20mm

Color :

Black

IEC Conformance :

No

Factory Lead Time :

12 Weeks

Contact Gender :

FEMALE

Mounting Type :

Free Hanging (In-Line)

Contact Finish :

Gold

Mount :

Free Hanging

Wire Type :

Discrete

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Radiation Hardening :

No

Reliability :

COMMERCIAL

Published :

2003

Number of Positions :

10

JESD-609 Code :

e4

Feature :

Jackscrews

Max Voltage Rating (AC) :

120V

REACH SVHC :

No SVHC

RoHS Status :

ROHS3 Compliant

Filter Feature :

No

Cable Termination :

Crimp

Additional Feature :

COMPATABLE CONTACT: M80-0130005, PANEL MOUNTABLE

Max Current Rating :

3A

Plating Thickness :

11μin

Body/Shell Style :

PLUG

Durability :

500 Cycles

Connector Type :

Receptacle

Insulation Diameter-Min :

0.043 inch

Option :

GENERAL PURPOSE

Mixed Contacts :

No
