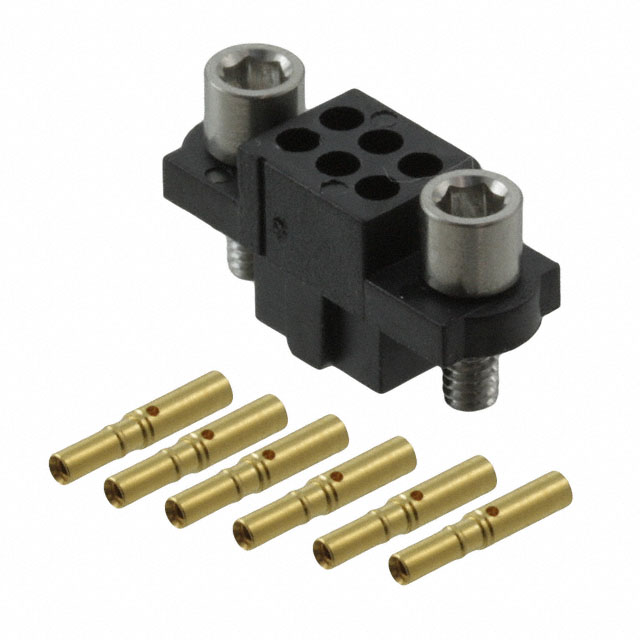

M80-4810605

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Color :

Black

Wire Type :

Discrete

MIL Conformance :

No

Wire Gauge :

24-28 AWG

Factory Lead Time :

12 Weeks

Cable Termination :

Crimp

Contact Gender :

FEMALE

Additional Feature :

COMPATABLE CONTACT: M80-0130005, PANEL MOUNTABLE

Contact Finish Thickness :

11.8μin 0.30μm

Contact Material :

BERYLLIUM COPPER

DIN Conformance :

No

Packaging :

Bulk

Durability :

500 Cycles

IEC Conformance :

No

Plating Thickness :

11μin

Row Spacing :

0.079 (2.00mm)

Connector Type :

Receptacle

Pbfree Code :

yes

JESD-609 Code :

e4

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mixed Contacts :

No

Wire Gauge (Max) :

28 AWG

Pitch :

0.079 2.00mm

Mounting Type :

Free Hanging (In-Line)

Option :

GENERAL PURPOSE

Number of Positions :

6

Feature :

Jackscrews

Total Number of Contacts :

6

Insulation Resistance :

100000000Ohm

Weight :

1.328005g

Radiation Hardening :

No

Published :

2011

UL Flammability Code :

94V-0

Reliability :

COMMERCIAL

Reference Standard :

UL

Number of Rows :

2

Contact Type :

Female Socket

Wire Gauge (Min) :

24 AWG

Operating Temperature (Min) :

-55°C

Series :

Datamate J-Tek

Mount :

Free Hanging

Filter Feature :

No

ECCN Code :

EAR99

Body/Shell Style :

PLUG

RoHS Status :

ROHS3 Compliant

Contact Finish :

Gold

Insulation Diameter-Min :

0.043 inch
