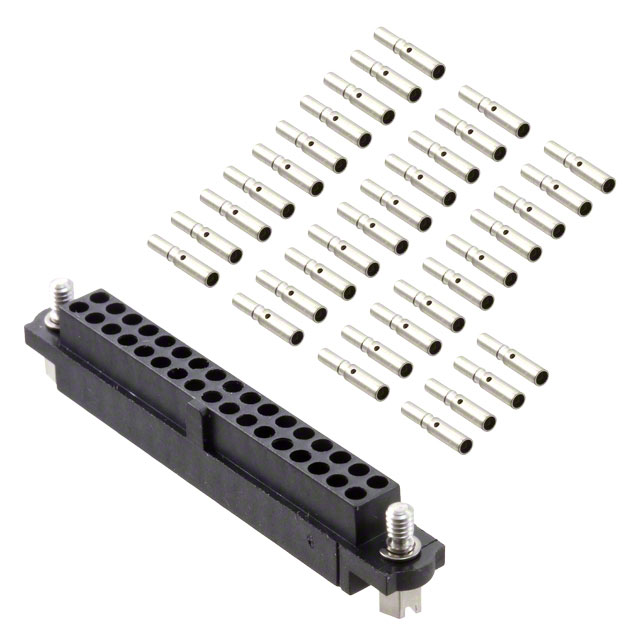

M80-4803442
Or copy the link below:
- Mfr.Part #
- M80-4803442
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 34POS CRIMP 22AWG GOLD
- Stock
- 45
- In Stock ：
- 45
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Free Hanging, Panel Mount
- Contact Material :
- NOT SPECIFIED
- Filter Feature :
- No
- Connector Type :
- Receptacle
- Option :
- GENERAL PURPOSE
- Contact Finish :
- Gold
- Series :
- Datamate J-Tek
- Row Spacing :
- 0.079 (2.00mm)
- Polarization Key :
- POLARIZED HOUSING
- Reliability :
- COMMERCIAL
- Insulation Resistance :
- 100000000Ohm
- Rated Current (Signal) :
- 3A
- Mixed Contacts :
- No
- MIL Conformance :
- No
- Total Number of Contacts :
- 34
- JESD-609 Code :
- e3
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Contact Gender :
- FEMALE
- Number of Rows :
- 2
- Reference Standard :
- UL
- Durability :
- 500 Cycles
- Mounting Type :
- Free Hanging (In-Line)
- Wire Type :
- Discrete
- Wire Gauge :
- 22 AWG
- Contact Finish Thickness :
- 11.8μin 0.30μm
- Packaging :
- Bulk
- Cable Termination :
- Crimp
- Additional Feature :
- PANEL MOUNTABLE
- Insulation Material :
- GLASS FILLED POLYPHENYLENE SULPHIDE
- UL Flammability Code :
- 94V-0
- IEC Conformance :
- No
- DIN Conformance :
- No
- Published :
- 2011
- Number of Positions :
- 34
- Feature :
- Jackscrews
- Color :
- Black
- Factory Lead Time :
- 12 Weeks
- Contact Type :
- Female Socket
- RoHS Status :
- ROHS3 Compliant
- Wire/Cable Gauge :
- 22 AWG
- Mount :
- Free Hanging
- Pitch :
- 0.079 2.00mm
- Operating Temperature (Min) :
- -55°C
- Datasheets
- M80-4803442
M80-4803442 Documents
