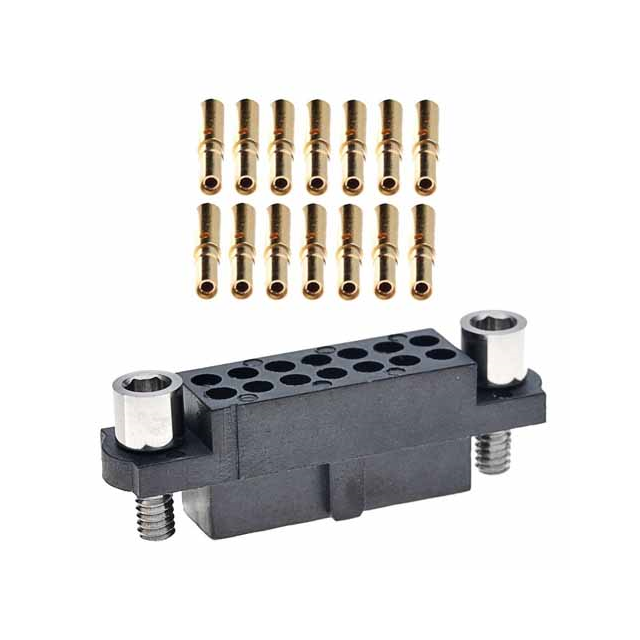

M80-4803242

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Series :

Datamate J-Tek

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Filter Feature :

No

Color :

Black

Total Number of Contacts :

32

Additional Feature :

PANEL MOUNTABLE

Operating Temperature (Min) :

-55°C

Reference Standard :

UL

Body Length or Diameter :

1.654 inch

Contact Type :

Female Socket

Insulation Resistance :

100000000Ohm

Contact Finish :

Gold

JESD-609 Code :

e3

Row Spacing :

0.079 (2.00mm)

Pbfree Code :

yes

Feature :

Jackscrews

ECCN Code :

EAR99

Reach Compliance Code :

not_compliant

Connector Type :

Receptacle

Number of Positions :

32

Contact Finish Thickness :

11.8μin 0.30μm

Durability :

500 Cycles

Cable Termination :

Crimp

HTS Code :

8536.69.40.40

Contact Material :

NOT SPECIFIED

IEC Conformance :

No

Option :

GENERAL PURPOSE

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Mixed Contacts :

No

DIN Conformance :

No

Contact Design :

LOOSE

Packaging :

Tube

Mounting Option 1 :

LOCKING

Published :

2013

Pitch :

0.079 2.00mm

RoHS Status :

ROHS3 Compliant

Rated Current (Signal) :

3A

Wire Gauge :

22 AWG

Polarization Key :

POLARIZED HOUSING

Number of Rows :

2

Wire Type :

Discrete

UL Flammability Code :

94V-0

Reliability :

COMMERCIAL

Mounting Type :

Free Hanging (In-Line)
