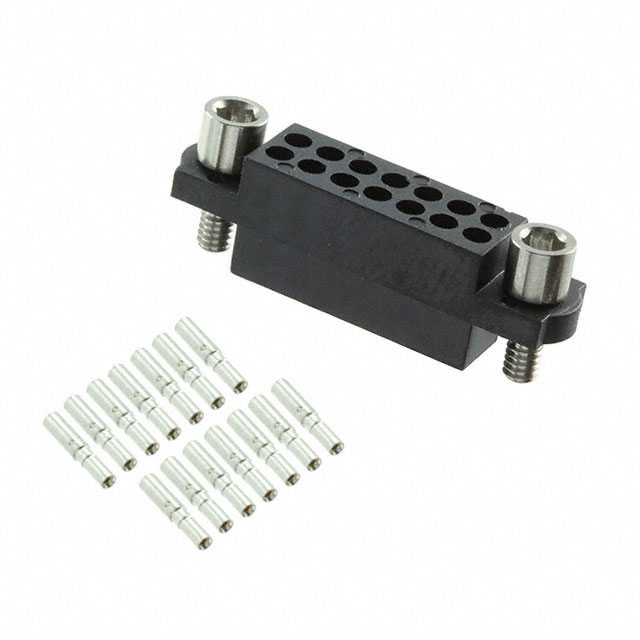

M80-4801442

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

RoHS Status :

ROHS3 Compliant

Color :

Black

Insulation Resistance :

100000000Ohm

Series :

Datamate J-Tek

Max Operating Temperature :

125°C

MIL Conformance :

No

Pitch :

0.079 2.00mm

Mixed Contacts :

No

Factory Lead Time :

12 Weeks

Reach Compliance Code :

not_compliant

Feature :

Jackscrews

Total Number of Contacts :

14

Max Voltage Rating (DC) :

120V

Contact Finish :

Gold

Wire Gauge :

22 AWG

Wire/Cable Gauge :

22 AWG

Depth :

7.55mm

Reliability :

COMMERCIAL

Mounting Type :

Free Hanging (In-Line)

Reference Standard :

UL

Row Spacing :

0.079 (2.00mm)

HTS Code :

8536.69.40.40

Durability :

500 Cycles

Filter Feature :

No

Wire Type :

Discrete

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Max Current Rating :

3A

DIN Conformance :

No

Contact Finish Thickness :

11.8μin 0.30μm

JESD-609 Code :

e3

Pbfree Code :

yes

Contact Gender :

FEMALE

Contact Type :

Female Socket

Contact Resistance :

25mOhm

Cable Termination :

Crimp

Connector Type :

Receptacle

Rated Current (Signal) :

3A

Packaging :

Bulk

Length :

24mm

Number of Rows :

2

Housing Material :

Polyphenylene

UL Flammability Code :

94V-0

Option :

GENERAL PURPOSE

Mount :

Free Hanging

Additional Feature :

PANEL MOUNTABLE

Contact Material :

Copper

Number of Positions :

14

Min Operating Temperature :

-55°C

Max Voltage Rating (AC) :

120V

IEC Conformance :

No

Published :

2011

Orientation :

Straight

Polarization Key :

POLARIZED HOUSING
