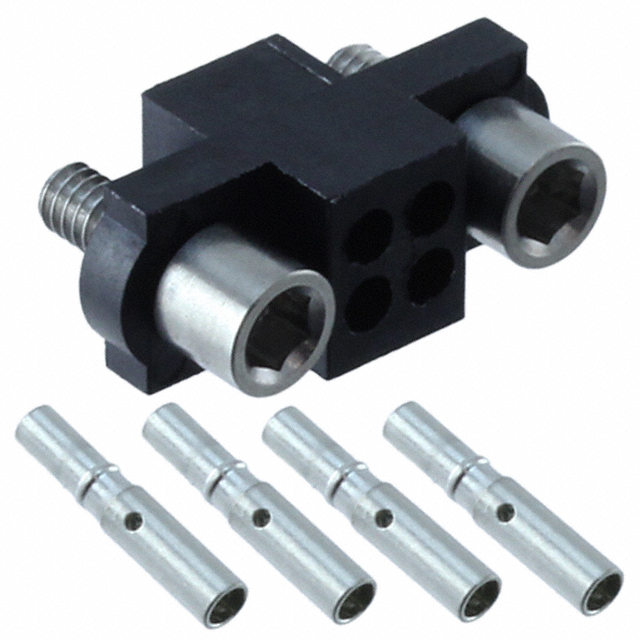

M80-4800442

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Series :

Datamate J-Tek

Packaging :

Bulk

Option :

GENERAL PURPOSE

Insulation Resistance :

100000000Ohm

Contact Finish Thickness :

11.8μin 0.30μm

Feature :

Jackscrews

Row Spacing :

0.079 (2.00mm)

Filter Feature :

No

Contact Design :

LOOSE

Cable Termination :

Crimp

Mounting Type :

Free Hanging (In-Line)

Rated Current (Signal) :

3A

Wire Gauge :

22 AWG

Number of Positions :

4

Pbfree Code :

yes

Connector Type :

Receptacle

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Contact Material :

NOT SPECIFIED

IEC Conformance :

No

Body Length or Diameter :

0.551 inch

Reference Standard :

UL

Color :

Black

Pitch :

0.079 2.00mm

Additional Feature :

PANEL MOUNTABLE

MIL Conformance :

No

Durability :

500 Cycles

Contact Type :

Female Socket

Operating Temperature (Min) :

-55°C

Polarization Key :

POLARIZED HOUSING

JESD-609 Code :

e3

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Wire Type :

Discrete

Contact Finish :

Gold

DIN Conformance :

No

Mounting Option 1 :

LOCKING

Published :

2015

Mixed Contacts :

No

Number of Rows :

2

Factory Lead Time :

12 Weeks

Total Number of Contacts :

4
