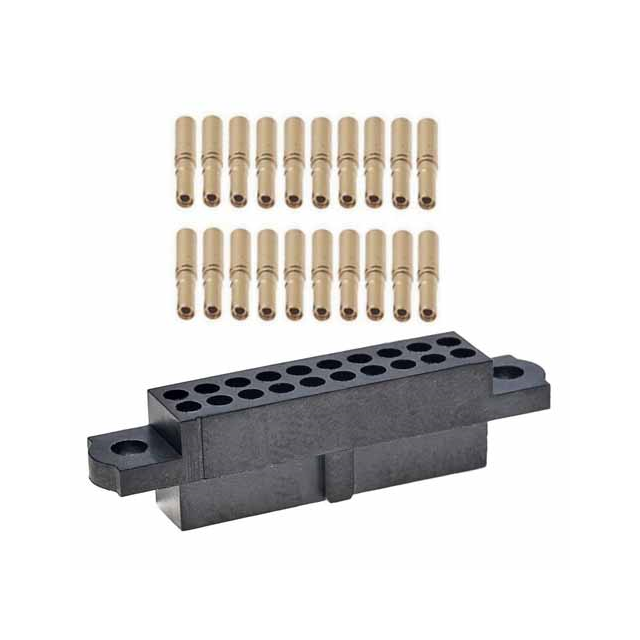

M80-4712405

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Rated Current (Signal) :

3A

Connector Type :

Receptacle

Filter Feature :

No

Contact Type :

Female Socket

Row Spacing :

0.079 (2.00mm)

Mixed Contacts :

No

Mounting Option 1 :

LOCKING

Total Number of Contacts :

24

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Contact Material :

NOT SPECIFIED

Operating Temperature (Min) :

-55°C

Body/Shell Style :

PLUG

Number of Positions :

24

Reference Standard :

UL

Durability :

500 Cycles

Cable Termination :

Crimp

UL Flammability Code :

94V-0

Pitch :

0.079 2.00mm

Polarization Key :

POLARIZED HOUSING

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

Number of Rows :

2

Additional Feature :

COMPATIBLE CONTACT: M80-0130005

Contact Design :

LOOSE

Wire Gauge :

24-28 AWG

MIL Conformance :

No

IEC Conformance :

No

DIN Conformance :

No

Wire Type :

Discrete

RoHS Status :

ROHS3 Compliant

Contact Finish :

Gold

Pbfree Code :

yes

Color :

Black

Packaging :

Bulk

JESD-609 Code :

e4

Insulation Resistance :

100000000Ohm

Body Length or Diameter :

1.339 inch

Mounting Option 2 :

JACKSCREW

Reliability :

COMMERCIAL

Contact Finish Thickness :

11.8μin 0.30μm

Series :

Datamate J-Tek

Mounting Type :

Free Hanging (In-Line)
