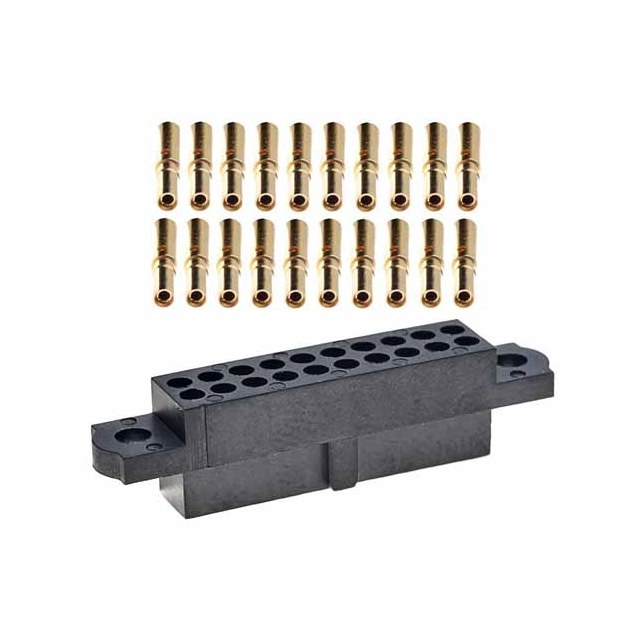

M80-4701842

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Plating Thickness :

11μin

Contact Type :

Female Socket

Color :

Black

Operating Temperature (Min) :

-55°C

ECCN Code :

EAR99

Contact Finish Thickness :

11.8μin 0.30μm

HTS Code :

8536.69.40.40

Reference Standard :

UL

DIN Conformance :

No

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Contact Material :

BERYLLIUM COPPER

Contact Finish :

Gold

Option :

GENERAL PURPOSE

Connector Type :

Receptacle

Contact Gender :

FEMALE

Cable Termination :

Crimp

Additional Feature :

COMPATIBLE CONTACT: M80-0110001

Row Spacing :

0.079 (2.00mm)

Total Number of Contacts :

18

Mounting Type :

Free Hanging (In-Line)

Mount :

Free Hanging

Packaging :

Bulk

Factory Lead Time :

10 Weeks

JESD-609 Code :

e3

Body/Shell Style :

PLUG

Durability :

500 Cycles

Number of Positions :

18

Filter Feature :

No

Pbfree Code :

yes

Wire Type :

Discrete

Wire/Cable Gauge :

22 AWG

Insulation Resistance :

100000000Ohm

RoHS Status :

ROHS3 Compliant

Reliability :

COMMERCIAL

Published :

2011

Pitch :

0.079 2.00mm

IEC Conformance :

No

Series :

Datamate J-Tek

Number of Rows :

2

Mixed Contacts :

No

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge :

22 AWG

UL Flammability Code :

94V-0
