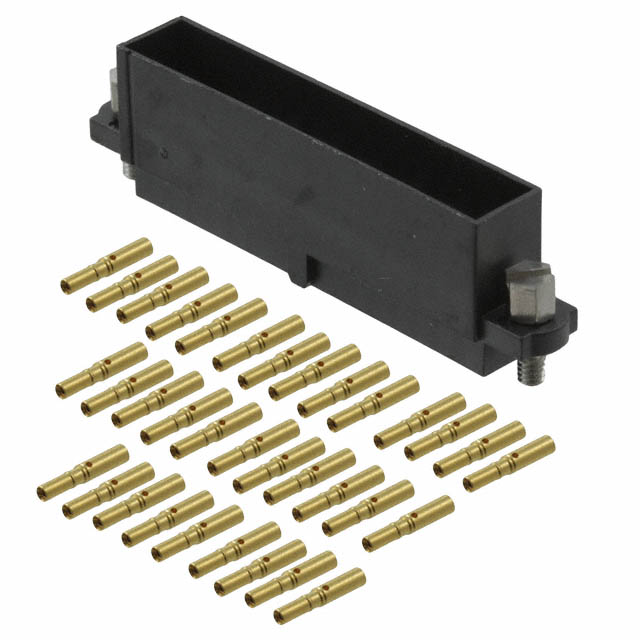

M80-4663405

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Contact Finish Thickness :

11.8μin 0.30μm

Row Spacing :

0.079 (2.00mm)

Packaging :

Bulk

Contact Gender :

FEMALE

REACH SVHC :

No SVHC

Pbfree Code :

yes

Max Voltage Rating (AC) :

120V

Pitch :

0.079 2.00mm

Reach Compliance Code :

not_compliant

Max Current Rating :

3A

Wire Gauge (Max) :

28 AWG

Mounting Type :

Free Hanging (In-Line)

Durability :

500 Cycles

Wire Type :

Discrete

DIN Conformance :

No

Contact Type :

Female Socket

Contact Finish :

Gold

JESD-609 Code :

e4

Wire Gauge (Min) :

24 AWG

Mixed Contacts :

No

Number of Rows :

2

Rated Current (Signal) :

3A

Contact Resistance :

25mOhm

UL Flammability Code :

94V-0

IEC Conformance :

No

Color :

Black

Additional Feature :

COMPATIBLE CONTACT: M80-0130005

Reference Standard :

UL

Insulation Resistance :

100000000Ohm

Body/Shell Style :

PLUG

Total Number of Contacts :

34

Filter Feature :

No

Fastening Type :

Screw Lock

Orientation :

Straight

Length :

44mm

Number of Positions :

34

Reliability :

COMMERCIAL

Mount :

Free Hanging, Panel

Series :

Datamate J-Tek

Connector Type :

Receptacle

Contact Material :

Copper

Min Operating Temperature :

-55°C

HTS Code :

8536.69.40.40

Cable Termination :

Crimp

ECCN Code :

EAR99

Wire Gauge :

24-28 AWG

MIL Conformance :

No

RoHS Status :

ROHS3 Compliant

Polarization Key :

POLARIZED HOUSING

Feature :

Jackscrews, Polarizing Key

Max Operating Temperature :

125°C

Body Depth :

0.494 inch

Published :

2011

Factory Lead Time :

13 Weeks

Option :

GENERAL PURPOSE

Current Rating :

3A

Housing Material :

Polyphenylene

Voltage - Rated :

120V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
