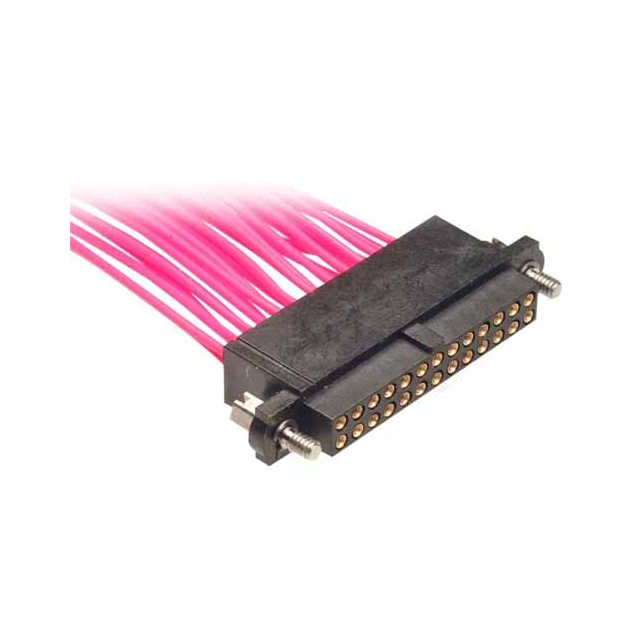

M80-4661442
- Mfr.Part #
- M80-4661442
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- DATAMATE J-TEK DIL FEMALE SMALL
- Stock
- 39,743
- In Stock :
- 39,743
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Free Hanging, Panel Mount
- Packaging :
- Bulk
- RoHS Status :
- ROHS3 Compliant
- Durability :
- 500 Cycles
- Number of Rows :
- 2
- Contact Material :
- BERYLLIUM COPPER
- Reference Standard :
- UL
- Fastening Type :
- Screw Lock
- Number of Positions :
- 14
- Insulation Material :
- GLASS FILLED POLYPHENYLENE SULPHIDE
- Pitch :
- 0.079 2.00mm
- MIL Conformance :
- No
- Wire Type :
- Discrete
- Operating Temperature (Min) :
- -55°C
- Reliability :
- COMMERCIAL
- Connector Type :
- Receptacle
- Contact Finish Thickness :
- 11.8μin 0.30μm
- Mixed Contacts :
- No
- Cable Termination :
- Crimp
- Contact Type :
- Female Socket
- Body Depth :
- 0.494 inch
- JESD-609 Code :
- e3
- Row Spacing :
- 0.079 (2.00mm)
- UL Flammability Code :
- 94V-0
- Body Length or Diameter :
- 0.945 inch
- Total Number of Contacts :
- 14
- Option :
- GENERAL PURPOSE
- HTS Code :
- 8536.69.40.40
- Wire Gauge :
- 24-28 AWG
- Contact Design :
- LOOSE
- Series :
- Datamate J-Tek
- Color :
- Black
- Polarization Key :
- POLARIZED HOUSING
- Body/Shell Style :
- PLUG
- ECCN Code :
- EAR99
- Mounting Type :
- Free Hanging (In-Line)
- Feature :
- Jackscrews, Polarizing Key
- Additional Feature :
- COMPATIBLE CONTACT: M80-0130001
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 13 Weeks
- Insulation Resistance :
- 100000000Ohm
- IEC Conformance :
- No
- Pbfree Code :
- yes
- DIN Conformance :
- No
- Rated Current (Signal) :
- 3A
- Filter Feature :
- No
- Contact Finish :
- Gold
- Datasheets
- M80-4661442
