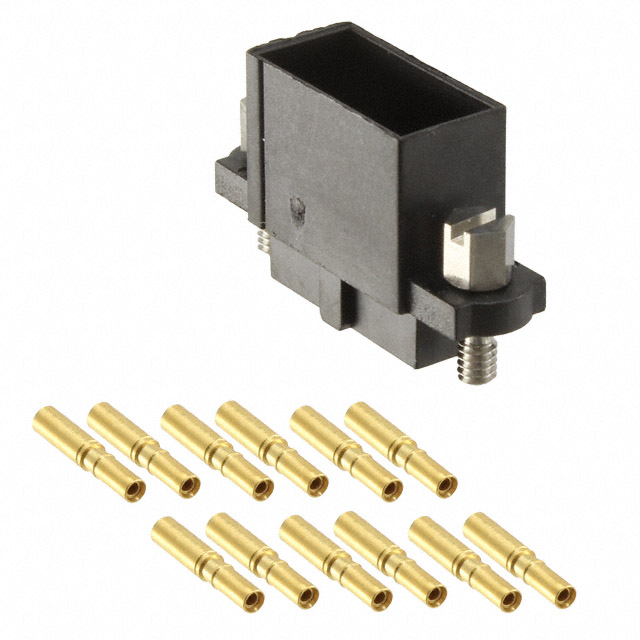

M80-4661205

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

HTS Code :

8536.69.40.40

Wire Gauge :

24-28 AWG

IEC Conformance :

No

Mounting Type :

Free Hanging (In-Line)

Factory Lead Time :

13 Weeks

Body/Shell Style :

PLUG

Wire Gauge (Min) :

24 AWG

Reach Compliance Code :

not_compliant

Pitch :

0.079 2.00mm

Contact Finish :

Gold

Contact Type :

Female Socket

Connector Type :

Receptacle

Number of Rows :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Color :

Black

Rated Current (Signal) :

3A

DIN Conformance :

No

JESD-609 Code :

e4

Feature :

Jackscrews, Polarizing Key

Polarization Key :

POLARIZED HOUSING

Mount :

Free Hanging

Total Number of Contacts :

12

Published :

2011

Number of Positions :

12

Option :

GENERAL PURPOSE

Durability :

500 Cycles

UL Flammability Code :

94V-0

Series :

Datamate J-Tek

Insulation Resistance :

100000000Ohm

Reliability :

COMMERCIAL

Mixed Contacts :

No

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Body Depth :

0.494 inch

Wire Gauge (Max) :

28 AWG

Contact Material :

BERYLLIUM COPPER

Operating Temperature (Min) :

-55°C

Reference Standard :

UL

Pbfree Code :

yes

Cable Termination :

Crimp

MIL Conformance :

No

Row Spacing :

0.079 (2.00mm)

Contact Finish Thickness :

11.8μin 0.30μm

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Fastening Type :

Screw Lock

Wire Type :

Discrete

Packaging :

Bulk

Additional Feature :

COMPATIBLE CONTACT: M80-0130005

Contact Gender :

FEMALE

Body Length or Diameter :

0.866 inch

Filter Feature :

No
