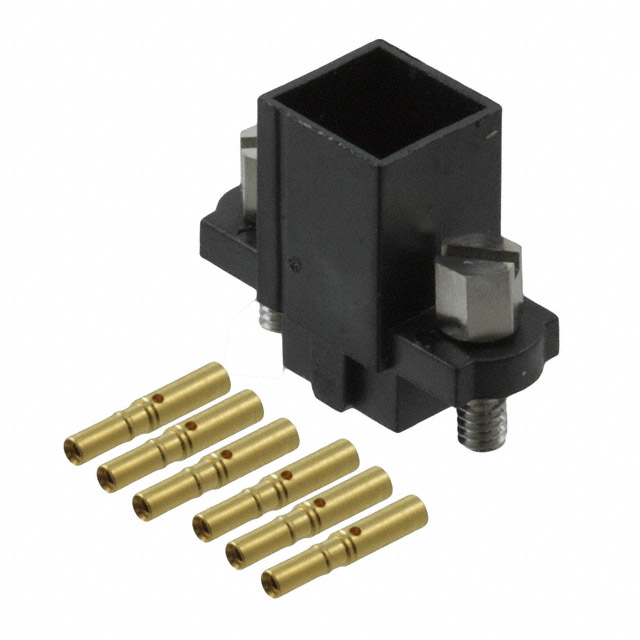

M80-4660605
- Mfr.Part #
- M80-4660605
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 6P CRIMP 24-28AWG GOLD
- Stock
- 12,996
- In Stock :
- 12,996
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Free Hanging, Panel Mount
- Contact Type :
- Female Socket
- Color :
- Black
- Body Depth :
- 0.494 inch
- JESD-609 Code :
- e4
- UL Flammability Code :
- 94V-0
- REACH SVHC :
- No SVHC
- Number of Positions :
- 6
- Fastening Type :
- Screw Lock
- Reliability :
- COMMERCIAL
- Current Rating :
- 3A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge :
- 24-28 AWG
- Contact Gender :
- FEMALE
- Radiation Hardening :
- No
- Insulation Material :
- GLASS FILLED POLYPHENYLENE SULPHIDE
- Mixed Contacts :
- No
- Contact Material :
- Copper
- Number of Rows :
- 2
- Orientation :
- Straight
- Polarization Key :
- POLARIZED HOUSING
- Operating Temperature (Min) :
- -55°C
- Insulation Resistance :
- 100000000Ohm
- ECCN Code :
- EAR99
- Filter Feature :
- No
- Cable Termination :
- Crimp
- Total Number of Contacts :
- 6
- DIN Conformance :
- No
- Connector Type :
- Receptacle
- MIL Conformance :
- No
- Durability :
- 500 Cycles
- Mount :
- Free Hanging, Panel
- Rated Current (Signal) :
- 3A
- Pbfree Code :
- yes
- Contact Finish :
- Gold
- Packaging :
- Bulk
- Factory Lead Time :
- 13 Weeks
- Additional Feature :
- COMPATIBLE CONTACT: M80-0130005
- Voltage - Rated :
- 120V
- Published :
- 2009
- Option :
- GENERAL PURPOSE
- Series :
- Datamate J-Tek
- Row Spacing :
- 0.079 (2.00mm)
- Pitch :
- 0.079 2.00mm
- Wire Gauge (Max) :
- 28 AWG
- Wire Gauge (Min) :
- 24 AWG
- Body/Shell Style :
- PLUG
- Reference Standard :
- UL
- Mounting Type :
- Free Hanging (In-Line)
- Contact Finish Thickness :
- 11.8μin 0.30μm
- Feature :
- Jackscrews, Polarizing Key
- IEC Conformance :
- No
- Wire Type :
- Discrete
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- M80-4660605
