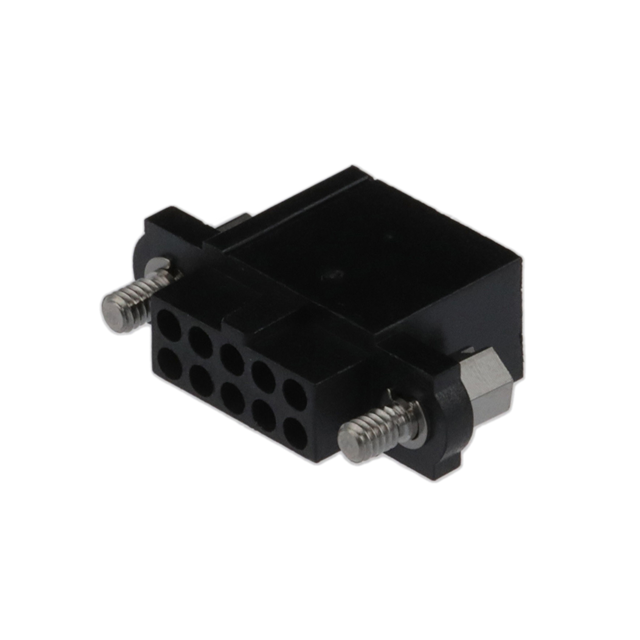

M80-4651005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Number of Rows :

2

Row Spacing :

0.079 (2.00mm)

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Cable Termination :

Crimp

Body/Shell Style :

PLUG

Reliability :

COMMERCIAL

DIN Conformance :

No

Rated Current (Signal) :

3A

Wire Gauge :

22 AWG

HTS Code :

8536.69.40.40

Pbfree Code :

yes

Reach Compliance Code :

not_compliant

Mount :

Free Hanging

Factory Lead Time :

13 Weeks

Durability :

500 Cycles

Number of Positions :

10

Contact Gender :

FEMALE

IEC Conformance :

No

Contact Type :

Female Socket

UL Flammability Code :

94V-0

Pitch :

0.079 2.00mm

Additional Feature :

POLARISED

Wire/Cable Gauge :

22 AWG

Fastening Type :

Screw Lock

Operating Temperature (Min) :

-55°C

Filter Feature :

No

Wire Type :

Discrete

Body Length or Diameter :

0.787 inch

Series :

Datamate J-Tek

Feature :

Jackscrews, Polarizing Key, Potting Wall

ECCN Code :

EAR99

Contact Finish Thickness :

11.8μin 0.30μm

Connector Type :

Receptacle

Mounting Type :

Free Hanging (In-Line)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Bulk

RoHS Status :

ROHS3 Compliant

Polarization Key :

POLARIZED HOUSING

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Contact Finish :

Gold

MIL Conformance :

No

Reference Standard :

UL

JESD-609 Code :

e4

Color :

Black

Contact Material :

Brass

Total Number of Contacts :

10

Body Depth :

0.494 inch

Published :

2013
