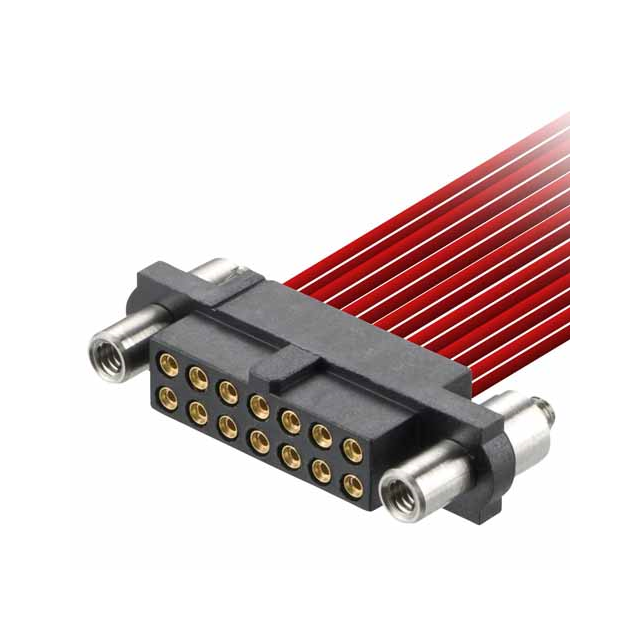

M80-4633442

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Plating Thickness :

11μin

Color :

Black

Series :

Datamate J-Tek Reverse Fix

Wire Type :

Discrete

Feature :

Jackscrews, Polarizing Key

Insulation Resistance :

100000000Ohm

Contact Finish :

Gold

Number of Positions :

34

ECCN Code :

EAR99

Fastening Type :

Screw Lock

DIN Conformance :

No

Wire Gauge :

24-28 AWG

Operating Temperature (Min) :

-55°C

Pbfree Code :

yes

Pitch :

0.079 2.00mm

Factory Lead Time :

16 Weeks

Option :

GENERAL PURPOSE

Contact Type :

Female Socket

Reference Standard :

UL

Mounting Type :

Panel Mount

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Durability :

500 Cycles

Filter Feature :

No

Insulation Diameter-Min :

0.043 inch

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

Connector Type :

Receptacle

Total Number of Contacts :

34

IEC Conformance :

No

Packaging :

Bulk

RoHS Status :

ROHS3 Compliant

HTS Code :

8536.69.40.40

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Mixed Contacts :

No

Row Spacing :

0.079 (2.00mm)

Number of Rows :

2

Body/Shell Style :

PLUG

Reliability :

COMMERCIAL

Contact Material :

BERYLLIUM COPPER

Contact Finish Thickness :

11.8μin 0.30μm

JESD-609 Code :

e3

Cable Termination :

Crimp
