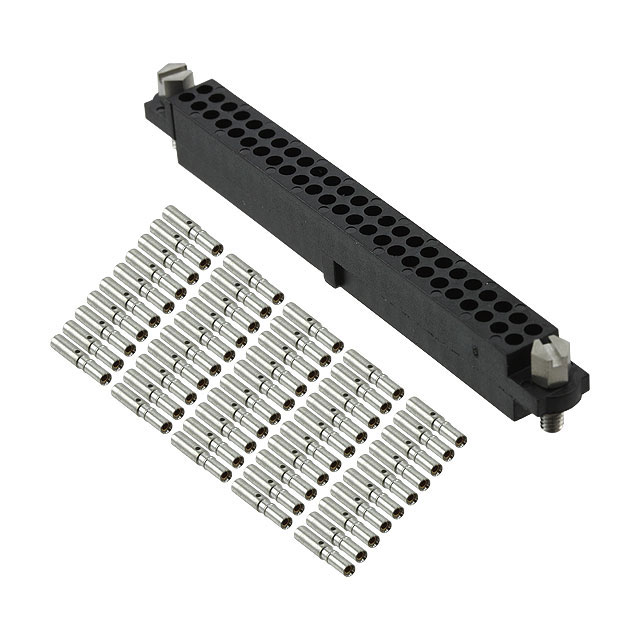

M80-4615042

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Packaging :

Bulk

Max Current Rating :

3A

MIL Conformance :

No

Filter Feature :

No

Max Voltage Rating (AC) :

120V

ECCN Code :

EAR99

HTS Code :

8536.69.40.40

Reference Standard :

UL

Additional Feature :

COMPATIBLE CONTACT: M80-0130001, PANEL MOUNTABLE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

Copper

Orientation :

Straight

Width :

5.55mm

Flammability Rating :

UL94 V-0

Rated Current (Signal) :

3A

Row Spacing :

0.079 (2.00mm)

Polarization Key :

POLARIZED HOUSING

Published :

2003

Option :

GENERAL PURPOSE

Reliability :

COMMERCIAL

Mixed Contacts :

No

Lead Pitch :

2mm

REACH SVHC :

No SVHC

Cable Termination :

Crimp

Min Operating Temperature :

-55°C

Voltage - Rated :

120V

DIN Conformance :

No

Contact Finish :

Gold

Wire Gauge (Min) :

24 AWG

Mount :

Free Hanging, Panel

JESD-609 Code :

e3

Wire Gauge (Max) :

28 AWG

Series :

Datamate J-Tek

Contact Finish Thickness :

11.8μin 0.30μm

Feature :

Jackscrews

UL Flammability Code :

94V-0

IEC Conformance :

No

Total Number of Contacts :

50

Mounting Type :

Free Hanging (In-Line)

Voltage - Rated DC :

120V

Wire Gauge :

24-28 AWG

Insulation Resistance :

100MOhm

Contact Gender :

FEMALE

Housing Material :

Polyphenylene

Number of Rows :

2

Connector Type :

Receptacle

Pbfree Code :

yes

Current Rating :

3A

Color :

Black

Height :

7.55mm

Max Operating Temperature :

125°C

Body/Shell Style :

PLUG

Contact Resistance :

25mOhm

Radiation Hardening :

No

Number of Positions :

50

Pitch :

0.079 2.00mm

Wire Type :

Discrete

Factory Lead Time :

11 Weeks

Length :

60mm

RoHS Status :

ROHS3 Compliant

Contact Type :

Female Socket
