M80-4613442

Share

Or copy the link below:

Mfr.Part #
M80-4613442
Manufacturer
Harwin
Package / Case
Datasheet
Download
Description
CONN RCPT 34POS CRIMP 24-28AWG
Stock
1
In Stock :
1

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Harwin
Product Category :
Free Hanging, Panel Mount
Lead Pitch :
2mm
Max Voltage Rating (AC) :
120V
Connector Type :
Receptacle
Packaging :
Bulk
ECCN Code :
EAR99
Contact Material :
Brass
Mount :
Free Hanging, Panel
Reliability :
COMMERCIAL
Height :
7.55mm
Contact Type :
Female Socket
Number of Rows :
2
Feature :
Jackscrews
Voltage - Rated DC :
250V
Series :
Datamate J-Tek
Reference Standard :
UL
Length :
44mm
Contact Finish :
Gold
Pitch :
0.079 2.00mm
Wire Gauge :
24-28 AWG
Max Operating Temperature :
125°C
IEC Conformance :
No
RoHS Status :
ROHS3 Compliant
Housing Material :
Polyphenylene
Contact Gender :
FEMALE
Current Rating :
3A
REACH SVHC :
No SVHC
Factory Lead Time :
13 Weeks
Mixed Contacts :
No
Radiation Hardening :
No
Mounting Type :
Free Hanging (In-Line)
Polarization Key :
POLARIZED HOUSING
Filter Feature :
No
Color :
Black
UL Flammability Code :
94V-0
Durability :
500 Cycles
Option :
GENERAL PURPOSE
Number of Positions :
34
Total Number of Contacts :
34
Cable Termination :
Crimp
MIL Conformance :
No
Contact Finish Thickness :
11.8μin 0.30μm
Weight :
4.153007g
Voltage - Rated :
120V
Published :
2003
Orientation :
Straight
Rated Current (Signal) :
3A
Body/Shell Style :
PLUG
DIN Conformance :
No
Wire Gauge (Max) :
28 AWG
Insulation Resistance :
100MOhm
Width :
5.55mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Row Spacing :
0.079 (2.00mm)
HTS Code :
8536.69.40.40
Pbfree Code :
yes
Flammability Rating :
UL94 V-0
JESD-609 Code :
e3
Max Current Rating :
3A
Wire Gauge (Min) :
24 AWG
Min Operating Temperature :
-55°C
Additional Feature :
COMPATIBLE CONTACT: M80-0130001, PANEL MOUNTABLE
Wire Type :
Discrete
Contact Resistance :
25mOhm
Introducing Free Hanging, Panel Mount Harwin M80-4613442 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), M80-4613442 pinout, M80-4613442 datasheet PDF, M80-4613442 amp .Beyond Free Hanging, Panel Mount Harwin M80-4613442 ,we also offer 3-640440-5, 04ZR-8M-P, 61201023021, Our vast inventory has you covered. Contact us now for immediate solutions.

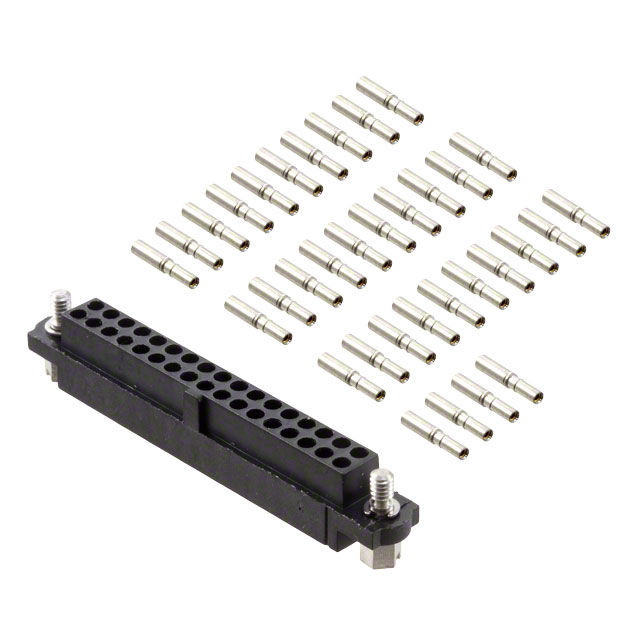

Harwin M80-4613442


M80-4613442 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from Harwin Inc. stock available at Xinshop
