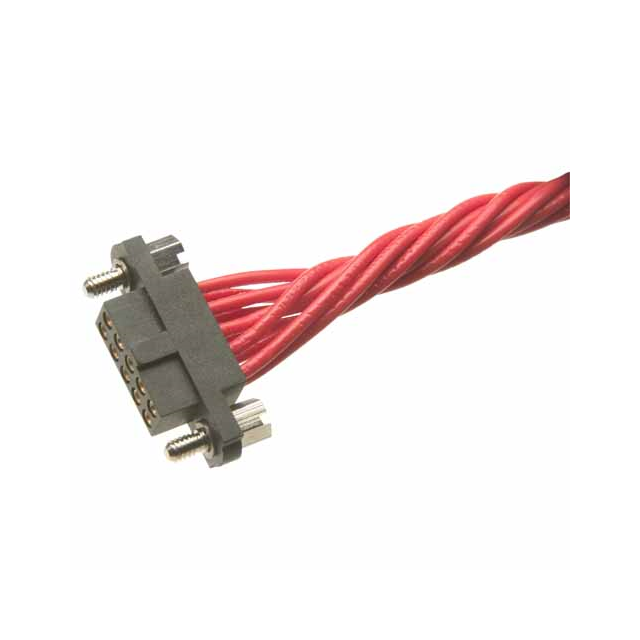

M80-4611642

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Wire Gauge (Min) :

24 AWG

Radiation Hardening :

No

Series :

Datamate J-Tek

Mixed Contacts :

No

Current Rating :

3A

Housing Material :

Polyphenylene

Feature :

Jackscrews

Body/Shell Style :

PLUG

UL Flammability Code :

94V-0

Row Spacing :

0.079 (2.00mm)

Contact Gender :

FEMALE

MIL Conformance :

No

Mounting Type :

Free Hanging (In-Line)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8536.69.40.40

Pbfree Code :

yes

Number of Positions :

16

Contact Type :

Female Socket

ECCN Code :

EAR99

Color :

Black

Option :

GENERAL PURPOSE

Mount :

Free Hanging

Pitch :

0.079 2.00mm

Reference Standard :

UL

Wire Gauge (Max) :

28 AWG

DIN Conformance :

No

JESD-609 Code :

e3

Published :

2011

Total Number of Contacts :

16

Durability :

500 Cycles

Insulation Resistance :

100MOhm

Wire Type :

Discrete

Connector Type :

Receptacle

Rated Current (Signal) :

3A

Min Operating Temperature :

-55°C

Contact Finish :

Gold

Cable Termination :

Crimp

Flammability Rating :

UL94 V-0

IEC Conformance :

No

Packaging :

Bulk

Polarization Key :

POLARIZED HOUSING

Reliability :

COMMERCIAL

RoHS Status :

ROHS3 Compliant

Voltage - Rated :

120V

Factory Lead Time :

11 Weeks

Number of Rows :

2

Additional Feature :

COMPATIBLE CONTACT: M80-0130001, PANEL MOUNTABLE

Contact Material :

Copper

Filter Feature :

No

Max Operating Temperature :

125°C

Wire Gauge :

24-28 AWG

Contact Finish Thickness :

11.8μin 0.30μm
