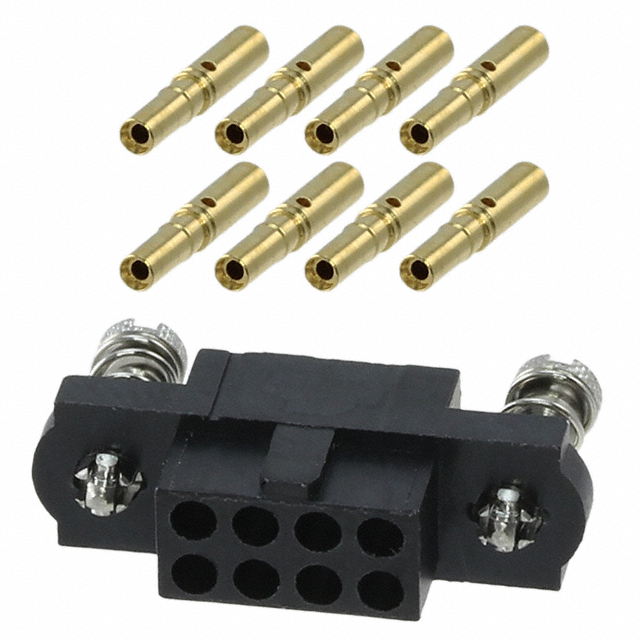

M80-4610805

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Body/Shell Style :

PLUG

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

11 Weeks

Connector Type :

Receptacle

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Bulk

Filter Feature :

No

Housing Material :

Polyphenylene

Number of Positions :

8

Total Number of Contacts :

8

Wire Type :

Discrete

Current Rating :

3A

Body Length or Diameter :

0.709 inch

Radiation Hardening :

No

Rated Current (Signal) :

3A

Option :

GENERAL PURPOSE

DIN Conformance :

No

Voltage - Rated :

120V

Row Spacing :

0.079 (2.00mm)

Contact Design :

LOOSE

Series :

Datamate J-Tek

Mount :

Free Hanging

MIL Conformance :

No

Polarization Key :

POLARIZED HOUSING

Reference Standard :

UL

Gender :

FEMALE

ECCN Code :

EAR99

Color :

Black

Cable Termination :

Crimp

Contact Finish :

Gold

Mounting Type :

Free Hanging (In-Line)

Min Operating Temperature :

-55°C

Insulation Resistance :

100MOhm

Wire Gauge :

24-28 AWG

UL Flammability Code :

94V-0

Number of Rows :

2

Durability :

500 Cycles

Pitch :

0.079 2.00mm

Pbfree Code :

yes

IEC Conformance :

No

Max Operating Temperature :

125°C

Contact Finish Thickness :

11.8μin 0.30μm

Wire Gauge (Max) :

24 AWG

Published :

2011

Contact Type :

Female Socket

Weight :

1.521009g

Wire Gauge (Min) :

28 AWG

Flammability Rating :

UL94 V-0

JESD-609 Code :

e4

Reliability :

COMMERCIAL

Feature :

Jackscrews
