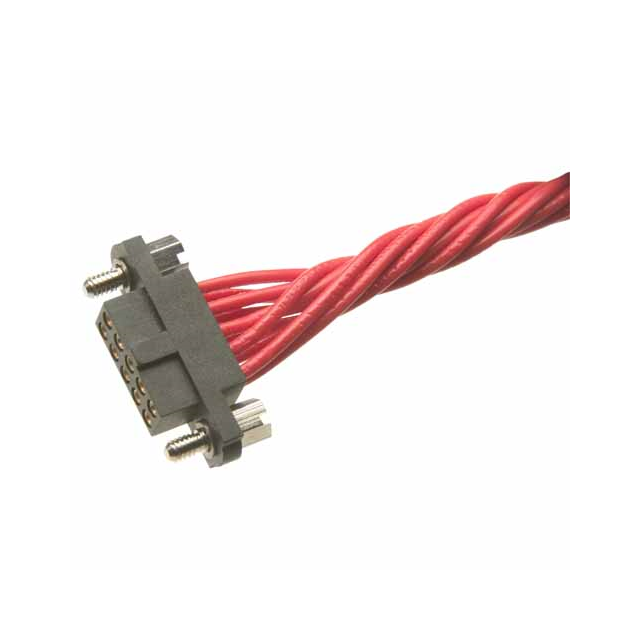

M80-4604842

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Polarization Key :

POLARIZED HOUSING

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

No

Wire Gauge :

22 AWG

Number of Positions :

48

Wire Type :

Discrete

HTS Code :

8536.69.40.40

Pbfree Code :

yes

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Pitch :

0.079 2.00mm

Contact Type :

Female Socket

Insulation Resistance :

100000000Ohm

DIN Conformance :

No

Total Number of Contacts :

48

JESD-609 Code :

e3

Connector Type :

Receptacle

Reliability :

COMMERCIAL

MIL Conformance :

No

Number of Rows :

2

Contact Material :

NOT SPECIFIED

UL Flammability Code :

94V-0

Filter Feature :

No

Series :

Datamate J-Tek

Contact Design :

LOOSE

Contact Finish Thickness :

11.8μin 0.30μm

Contact Finish :

Gold

Published :

2013

Mounting Type :

Free Hanging (In-Line)

Feature :

Jackscrews, Polarizing Key

Row Spacing :

0.079 (2.00mm)

Option :

GENERAL PURPOSE

Body/Shell Style :

PLUG

Additional Feature :

PANEL MOUNTABLE, COMPATIBLE CONTACTS: M80-0110001

Operating Temperature (Min) :

-55°C

Color :

Black

Rated Current (Signal) :

3A

RoHS Status :

ROHS3 Compliant

Reference Standard :

UL

Durability :

500 Cycles

Packaging :

Tube

ECCN Code :

EAR99

Cable Termination :

Crimp
