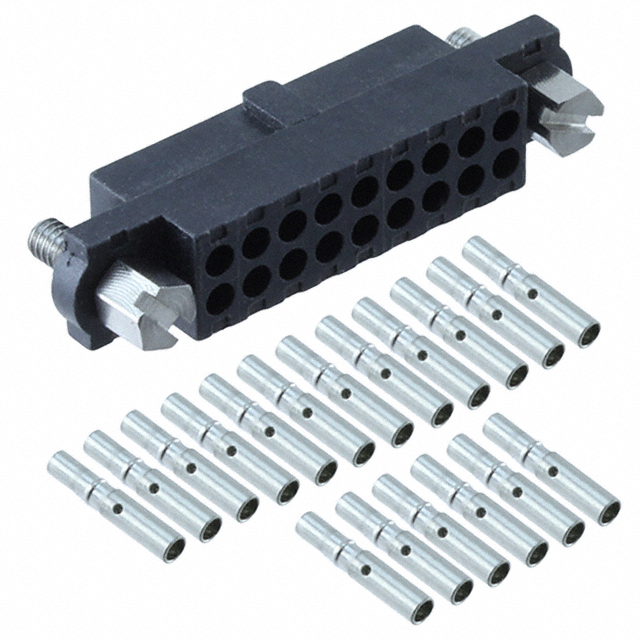

M80-4601842

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Operating Temperature (Min) :

-55°C

DIN Conformance :

No

Mount :

Free Hanging

Polarization Key :

POLARIZED HOUSING

Wire Gauge :

22 AWG

Feature :

Jackscrews, Polarizing Key

Total Number of Contacts :

18

Filter Feature :

No

Reliability :

COMMERCIAL

Series :

Datamate J-Tek

Contact Gender :

FEMALE

Radiation Hardening :

No

Published :

2013

Option :

GENERAL PURPOSE

Connector Type :

Receptacle

Body/Shell Style :

PLUG

Wire Type :

Discrete

Cable Termination :

Crimp

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire/Cable Gauge :

22 AWG

Contact Finish Thickness :

11.8μin 0.30μm

IEC Conformance :

No

UL Flammability Code :

94V-0

Pitch :

0.079 2.00mm

Additional Feature :

PANEL MOUNTABLE, COMPATIBLE CONTACTS: M80-0110001

Factory Lead Time :

12 Weeks

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Number of Positions :

18

Rated Current (Signal) :

3A

MIL Conformance :

No

Durability :

500 Cycles

Contact Type :

Female Socket

Color :

Black

Mounting Type :

Free Hanging (In-Line)

Packaging :

Bulk

Pbfree Code :

yes

Insulation Resistance :

100000000Ohm

HTS Code :

8536.69.40.40

Reference Standard :

UL

Number of Rows :

2

Mixed Contacts :

No

RoHS Status :

ROHS3 Compliant

ECCN Code :

EAR99

Row Spacing :

0.079 (2.00mm)

JESD-609 Code :

e3

Contact Finish :

Gold
