M80-4601805

Share

Or copy the link below:

Mfr.Part #
M80-4601805
Manufacturer
Harwin
Package / Case
Datasheet
Download
Description
CONN RCPT 18POS CRIMP 22AWG GOLD
Stock
16
In Stock :
16

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Harwin
Product Category :
Free Hanging, Panel Mount
Reach Compliance Code :
not_compliant
Wire Type :
Discrete
Published :
2013
Insulation Resistance :
100000000Ohm
Color :
Black
Series :
Datamate J-Tek
Contact Finish :
Gold
Contact Finish Thickness :
11.8μin 0.30μm
Cable Termination :
Crimp
Mount :
Free Hanging
Rated Current (Signal) :
3A
UL Flammability Code :
94V-0
MIL Conformance :
No
JESD-609 Code :
e4
Row Spacing :
0.079 (2.00mm)
DIN Conformance :
No
Feature :
Jackscrews, Polarizing Key
Operating Temperature (Min) :
-55°C
Contact Gender :
FEMALE
Reliability :
COMMERCIAL
Insulation Material :
GLASS FILLED POLYPHENYLENE SULPHIDE
Wire Gauge :
22 AWG
Pbfree Code :
yes
Connector Type :
Receptacle
Contact Type :
Female Socket
Number of Positions :
18
ECCN Code :
EAR99
Reference Standard :
UL
Body/Shell Style :
PLUG
Additional Feature :
PANEL MOUNTABLE, COMPATIBLE CONTACTS: M80-0110005
Mixed Contacts :
No
HTS Code :
8536.69.40.40
Wire/Cable Gauge :
22 AWG
IEC Conformance :
No
Factory Lead Time :
12 Weeks
Polarization Key :
POLARIZED HOUSING
RoHS Status :
ROHS3 Compliant
Option :
GENERAL PURPOSE
Total Number of Contacts :
18
Filter Feature :
No
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Mounting Type :
Free Hanging (In-Line)
Number of Rows :
2
Pitch :
0.079 2.00mm
Packaging :
Bulk
Contact Material :
NOT SPECIFIED
Durability :
500 Cycles
Introducing Free Hanging, Panel Mount Harwin M80-4601805 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), M80-4601805 pinout, M80-4601805 datasheet PDF, M80-4601805 amp .Beyond Free Hanging, Panel Mount Harwin M80-4601805 ,we also offer 3-640440-5, 04ZR-8M-P, 61201023021, Our vast inventory has you covered. Contact us now for immediate solutions.

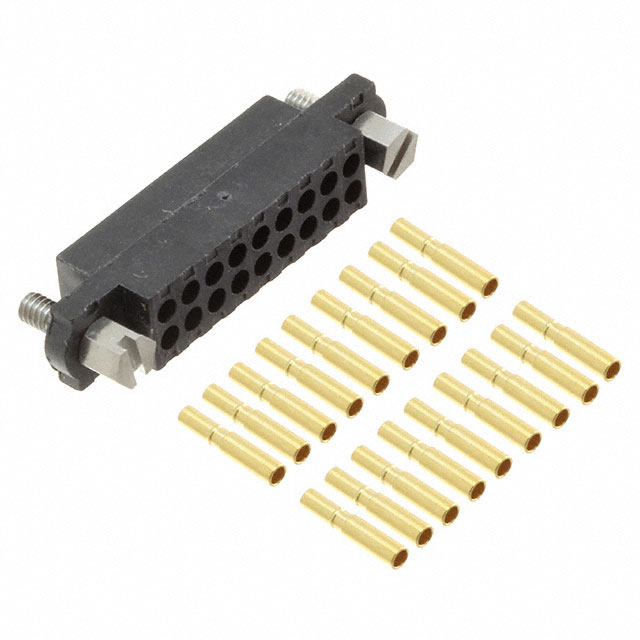

Harwin M80-4601805


M80-4601805 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from Harwin Inc. stock available at Xinshop
