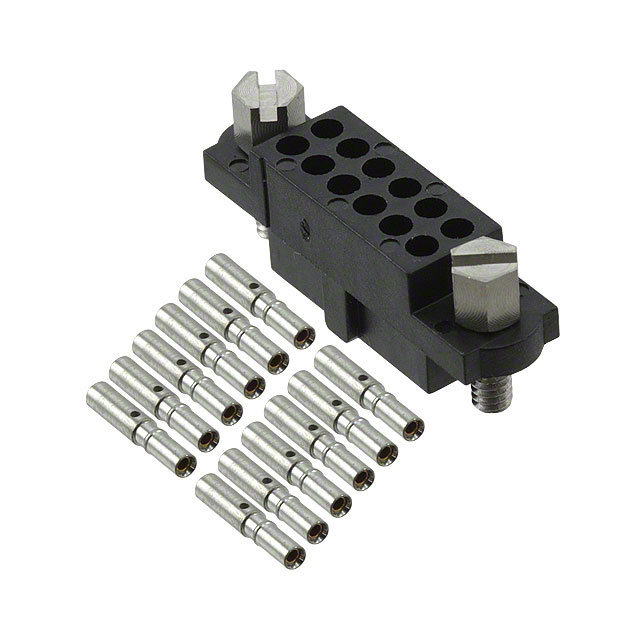

M80-4601242

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Wire Type :

Discrete

RoHS Status :

ROHS3 Compliant

Connector Type :

Receptacle

Wire/Cable Gauge :

22 AWG

Polarization Key :

POLARIZED HOUSING

Color :

Black

Orientation :

Straight

Radiation Hardening :

No

Max Current Rating :

3A

DIN Conformance :

No

Rated Current (Signal) :

3A

UL Flammability Code :

94V-0

Flammability Rating :

UL94 V-0

Voltage - Rated DC :

120V

Min Operating Temperature :

-55°C

Contact Finish Thickness :

11.8μin 0.30μm

Total Number of Contacts :

12

Number of Positions :

12

Cable Termination :

Crimp

Contact Finish :

Gold

Length :

22mm

Mount :

Free Hanging

Packaging :

Bulk

Pbfree Code :

yes

Row Spacing :

0.079 (2.00mm)

Contact Material :

Copper

Insulation Resistance :

100MOhm

Mixed Contacts :

No

REACH SVHC :

No SVHC

Factory Lead Time :

12 Weeks

Published :

2001

IEC Conformance :

No

Series :

Datamate J-Tek

Option :

GENERAL PURPOSE

Reliability :

COMMERCIAL

JESD-609 Code :

e3

Contact Resistance :

25mOhm

Reference Standard :

UL

Body/Shell Style :

PLUG

Mounting Type :

Free Hanging (In-Line)

Pitch :

0.079 2.00mm

MIL Conformance :

No

Contact Gender :

FEMALE

Durability :

500 Cycles

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Type :

Female Socket

Filter Feature :

No

Wire Gauge :

22 AWG

Max Operating Temperature :

125°C

Max Voltage Rating (AC) :

120V

Housing Material :

Polyphenylene

Feature :

Jackscrews, Polarizing Key

Additional Feature :

PANEL MOUNTABLE, COMPATIBLE CONTACTS: M80-0110001

Number of Rows :

2
