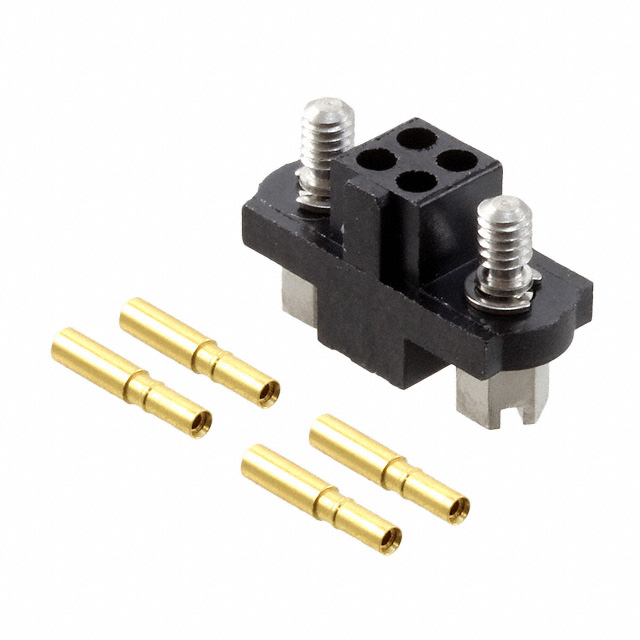

M80-4600405
- Mfr.Part #
- M80-4600405
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 4POS CRIMP 22AWG GOLD
- Stock
- 185
- In Stock :
- 185
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Free Hanging, Panel Mount
- REACH SVHC :
- No SVHC
- Mixed Contacts :
- No
- Series :
- Datamate J-Tek
- Option :
- GENERAL PURPOSE
- Number of Rows :
- 2
- Reliability :
- COMMERCIAL
- Wire Type :
- Discrete
- Color :
- Black
- Length :
- 14mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Resistance :
- 25mOhm
- Packaging :
- Bulk
- Filter Feature :
- No
- Reference Standard :
- UL
- Max Voltage Rating (AC) :
- 120V
- Row Spacing :
- 0.079 (2.00mm)
- Insulation Resistance :
- 100000000Ohm
- Radiation Hardening :
- No
- Wire/Cable Gauge :
- 22 AWG
- Contact Gender :
- FEMALE
- Total Number of Contacts :
- 4
- Rated Current (Signal) :
- 3A
- Number of Positions :
- 4
- Mount :
- Free Hanging
- Contact Finish Thickness :
- 11.8μin 0.30μm
- Mounting Type :
- Free Hanging (In-Line)
- Max Operating Temperature :
- 125°C
- IEC Conformance :
- No
- Pitch :
- 0.079 2.00mm
- Published :
- 2001
- Min Operating Temperature :
- -55°C
- Orientation :
- Straight
- DIN Conformance :
- No
- Polarization Key :
- POLARIZED HOUSING
- Connector Type :
- Receptacle
- Factory Lead Time :
- 12 Weeks
- Contact Material :
- Copper
- Depth :
- 7.55mm
- JESD-609 Code :
- e4
- RoHS Status :
- ROHS3 Compliant
- Body/Shell Style :
- PLUG
- Pbfree Code :
- yes
- Contact Finish :
- Gold
- Durability :
- 500 Cycles
- MIL Conformance :
- No
- Housing Material :
- Polyphenylene
- Wire Gauge :
- 22 AWG
- Cable Termination :
- Crimp
- Additional Feature :
- PANEL MOUNTABLE, COMPATIBLE CONTACTS: M80-0110005
- Max Current Rating :
- 3A
- Contact Type :
- Female Socket
- Feature :
- Jackscrews, Polarizing Key
- Datasheets
- M80-4600405
