M80-4592698

Share

Or copy the link below:

Mfr.Part #
M80-4592698
Manufacturer
Harwin
Package / Case
Datasheet
Download
Description
CONN RCPT HSG 26POS 2.00MM
Stock
40,881
In Stock :
40,881

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Harwin
Product Category :
Rectangular Connector Housings
Mounting Type :
Free Hanging (In-Line)
Contact Material :
Bronze
Voltage - Rated :
120V
HTS Code :
8536.69.40.40
Feature :
Jackscrews
Body Depth :
0.437 inch
Number of Positions :
26
Housing Material :
Polyamide
Note :
Contacts Not Included
Contact Plating :
Gold
DIN Conformance :
No
Wire Gauge (Min) :
28 AWG
Contact Finish - Mating :
NOT SPECIFIED
Reference Standard :
UL
Additional Feature :
POLARIZED
ECCN Code :
EAR99
Lead Pitch :
2mm
Pitch :
0.079 2.00mm
Color :
Black
Published :
2009
Pbfree Code :
yes
Rated Current (Signal) :
3A
Contact Gender :
Male
Contact Type :
Female Socket
Series :
Datamate Trio-Tek
Total Number of Contacts :
26
Connector Type :
Receptacle
Wire Gauge (Max) :
22 AWG
Current Rating :
3A
Reliability :
COMMERCIAL
Number of Rows :
2
Factory Lead Time :
13 Weeks
Mixed Contacts :
No
UL Flammability Code :
94V-0
Row Spacing :
0.079 (2.00mm)
Option :
GENERAL PURPOSE
MIL Conformance :
No
Body Length or Diameter :
1.417 inch
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Mount :
Free Hanging
Filter Feature :
No
Body/Shell Style :
PLUG
RoHS Status :
ROHS3 Compliant
Insulation Resistance :
100000000Ohm
Packaging :
Bulk
REACH SVHC :
No SVHC
Operating Temperature (Min) :
-55°C
Polarization Key :
POLARIZED HOUSING
IEC Conformance :
No
Fastening Type :
Screw Lock
Durability :
400 Cycles
Contact Termination :
Crimp
Introducing Rectangular Connector Housings Harwin M80-4592698 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), M80-4592698 pinout, M80-4592698 datasheet PDF, M80-4592698 amp .Beyond Rectangular Connector Housings Harwin M80-4592698 ,we also offer GHR-05V-S, 1-1123722-3, 0022013037, Our vast inventory has you covered. Contact us now for immediate solutions.

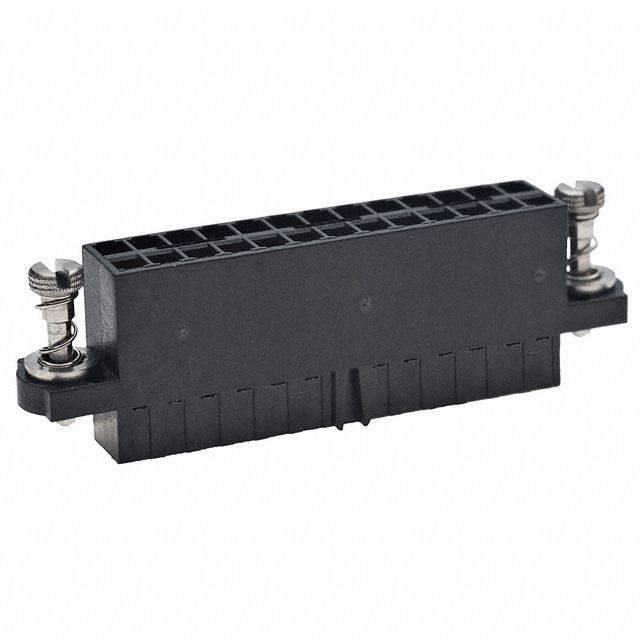

Harwin M80-4592698


2 Rows Receptacle Bulk Black 26 Positions Free Hanging (In-Line) Female Socket Crimp Datamate Trio-Tek Polyamide

M80-4592698 Overview


You get it in Receptacle packaging.Mounting type Free Hanging (In-Line) is selected for the device.Packaged in a Bulk case.A member of the Datamate Trio-Tek Series.Besides that, there's also POLARIZED, to name a few.This feature renders it more powerful in a number of ways because of its Jackscrews feature.There's a Free Hanging mount on the part.

M80-4592698 Features


Datamate Trio-Tek series


M80-4592698 Applications


There are a lot of Harwin Inc.
M80-4592698 Rectangular Connectors applications.


  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
