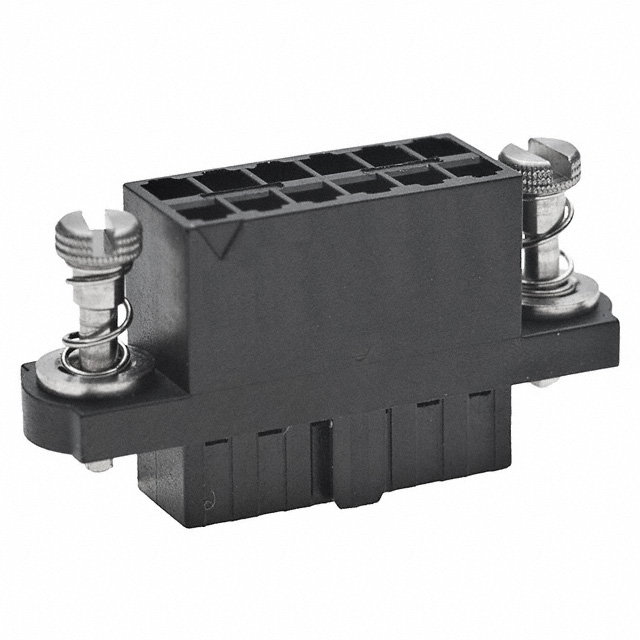

M80-4591298

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Body Length or Diameter :

0.866 inch

Color :

Black

Operating Temperature (Min) :

-55°C

UL Flammability Code :

94V-0

Factory Lead Time :

13 Weeks

Note :

Contacts Not Included

Durability :

400 Cycles

Series :

Datamate Trio-Tek

Mixed Contacts :

No

Polarization Key :

POLARIZED HOUSING

ECCN Code :

EAR99

Voltage - Rated :

120V

HTS Code :

8536.69.40.40

Fastening Type :

Screw Lock

Body/Shell Style :

PLUG

Number of Rows :

2

Total Number of Contacts :

12

Wire Gauge (Min) :

28 AWG

Filter Feature :

No

RoHS Status :

ROHS3 Compliant

Contact Type :

Female Socket

Mounting Type :

Free Hanging (In-Line)

Pitch :

0.079 2.00mm

Mount :

Free Hanging

Insulation Resistance :

100000000Ohm

Current Rating :

3A

Feature :

Jackscrews

Body Depth :

0.437 inch

Published :

2009

Contact Gender :

Male

Contact Material :

Bronze

Connector Type :

Receptacle

Number of Positions :

12

Contact Termination :

Crimp

Option :

GENERAL PURPOSE

Rated Current (Signal) :

3A

Row Spacing :

0.079 (2.00mm)

REACH SVHC :

No SVHC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Bulk

Reference Standard :

UL

Housing Material :

Polyamide

Wire Gauge (Max) :

22 AWG

Contact Finish - Mating :

NOT SPECIFIED

Reliability :

COMMERCIAL

IEC Conformance :

No

Additional Feature :

POLARIZED

Pbfree Code :

yes

Contact Plating :

Gold

MIL Conformance :

No

DIN Conformance :

No
