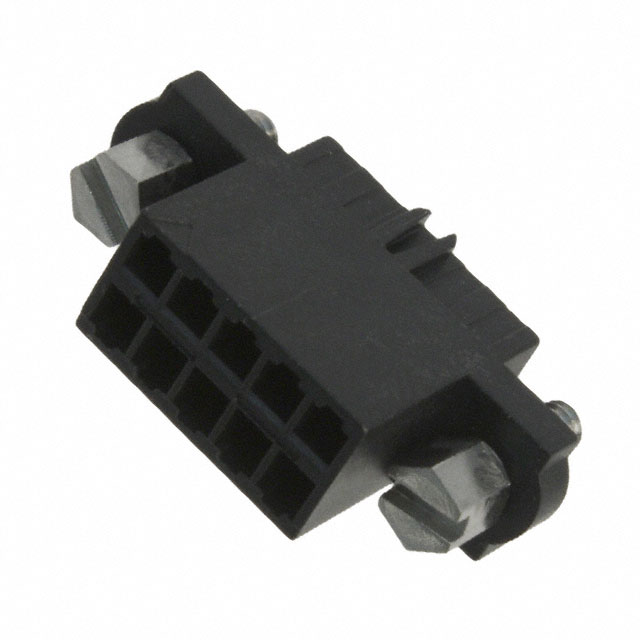

M80-4551098

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Contact Type :

Female Socket

Pitch :

0.079 2.00mm

Radiation Hardening :

No

Max Voltage Rating (AC) :

120V

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mixed Contacts :

No

Mount :

Free Hanging

Contact Termination :

Crimp

MIL Conformance :

No

Option :

GENERAL PURPOSE

Rated Current (Signal) :

3A

Body Depth :

0.437 inch

Filter Feature :

No

Reference Standard :

UL

Length :

20mm

Published :

2003

Reliability :

COMMERCIAL

Contact Material :

Bronze

Note :

Contacts Not Included

HTS Code :

8536.69.40.40

Orientation :

Straight

Contact Resistance :

25mOhm

UL Flammability Code :

94V-0

Feature :

Jackscrews

Flammability Rating :

UL94 V-0

Packaging :

Bulk

Current Rating :

3A

Mounting Type :

Free Hanging (In-Line)

RoHS Status :

ROHS3 Compliant

Total Number of Contacts :

10

ECCN Code :

EAR99

Max Current Rating :

3A

DIN Conformance :

No

Pbfree Code :

yes

Min Operating Temperature :

-55°C

Connector Type :

Receptacle

Polarization Key :

POLARIZED HOUSING

Number of Rows :

2

Contact Gender :

Male

Color :

Black

Additional Feature :

RoHS Compliant

Max Operating Temperature :

125°C

REACH SVHC :

No SVHC

Body/Shell Style :

PLUG

Voltage - Rated AC :

120V

Insulation Resistance :

100MOhm

Voltage - Rated :

120V

Row Spacing :

0.079 (2.00mm)

Factory Lead Time :

13 Weeks

Wire Gauge (Max) :

22 AWG

Contact Plating :

Gold

Housing Material :

Polyamide

Number of Positions :

10

Wire Gauge (Min) :

28 AWG

Durability :

400 Cycles

Series :

Datamate Trio-Tek
