M80-4550898

Share

Or copy the link below:

Mfr.Part #
M80-4550898
Manufacturer
Harwin
Package / Case
Datasheet
Download
Description
CONN RCPT HSG 8POS 2.00MM
Stock
165
In Stock :
165

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Harwin
Product Category :
Rectangular Connector Housings
Row Spacing :
0.079 (2.00mm)
Option :
GENERAL PURPOSE
Body Depth :
0.437 inch
Insulation Resistance :
100MOhm
Contact Gender :
Male
Filter Feature :
No
Contact Resistance :
25mOhm
Series :
Datamate Trio-Tek
Durability :
400 Cycles
Polarization Key :
POLARIZED HOUSING
Pbfree Code :
yes
UL Flammability Code :
94V-0
Reference Standard :
UL
Color :
Black
Radiation Hardening :
No
Total Number of Contacts :
8
MIL Conformance :
No
Pitch :
0.079 2.00mm
Contact Type :
Female Socket
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Wire Gauge (Max) :
22 AWG
Additional Feature :
RoHS Compliant
IEC Conformance :
No
Factory Lead Time :
13 Weeks
Mixed Contacts :
No
RoHS Status :
ROHS3 Compliant
Mount :
Free Hanging
Flammability Rating :
UL94 V-0
Contact Termination :
Crimp
Packaging :
Bulk
Operating Temperature (Min) :
-55°C
Contact Plating :
Gold
ECCN Code :
EAR99
Contact Material :
Bronze
DIN Conformance :
No
Current Rating :
3A
Published :
2008
Number of Rows :
2
Housing Material :
Polyamide
REACH SVHC :
No SVHC
Rated Current (Signal) :
3A
Reliability :
COMMERCIAL
Note :
Contacts Not Included
Mounting Type :
Free Hanging (In-Line)
Feature :
Jackscrews
Connector Type :
Receptacle
Voltage - Rated AC :
120V
Body/Shell Style :
PLUG
Wire Gauge (Min) :
28 AWG
Number of Positions :
8
Voltage - Rated :
120V
Orientation :
Straight
Body Length or Diameter :
0.709 inch
Introducing Rectangular Connector Housings Harwin M80-4550898 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), M80-4550898 pinout, M80-4550898 datasheet PDF, M80-4550898 amp .Beyond Rectangular Connector Housings Harwin M80-4550898 ,we also offer GHR-05V-S, 1-1123722-3, 0022013037, Our vast inventory has you covered. Contact us now for immediate solutions.

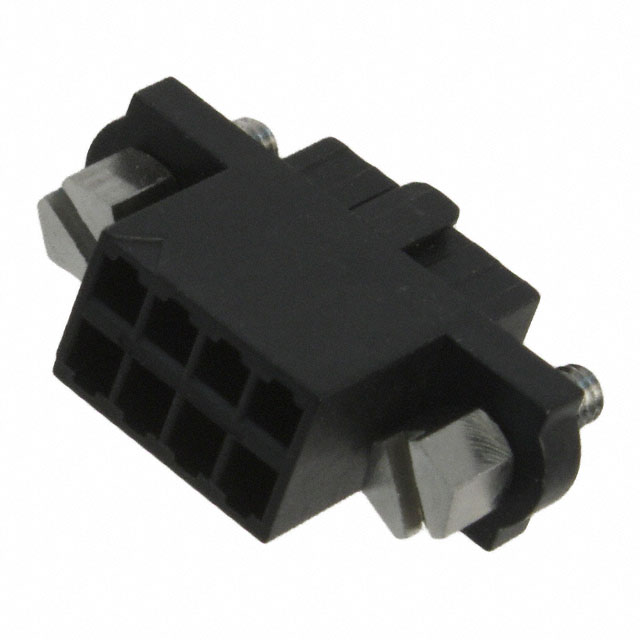

Harwin M80-4550898


2 Rows Receptacle Bulk Black 8 Positions Free Hanging (In-Line) Female Socket Crimp Datamate Trio-Tek Polyamide

M80-4550898 Overview


The product is packaged in Receptacle.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Datamate Trio-Tek Series.To name a few, there is also ROHS COMPLIANT.There are a number of advantages to its Jackscrews feature.Part Free Hanging is mounted to the part.

M80-4550898 Features


Datamate Trio-Tek series


M80-4550898 Applications


There are a lot of Harwin Inc.
M80-4550898 Rectangular Connectors applications.


  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
