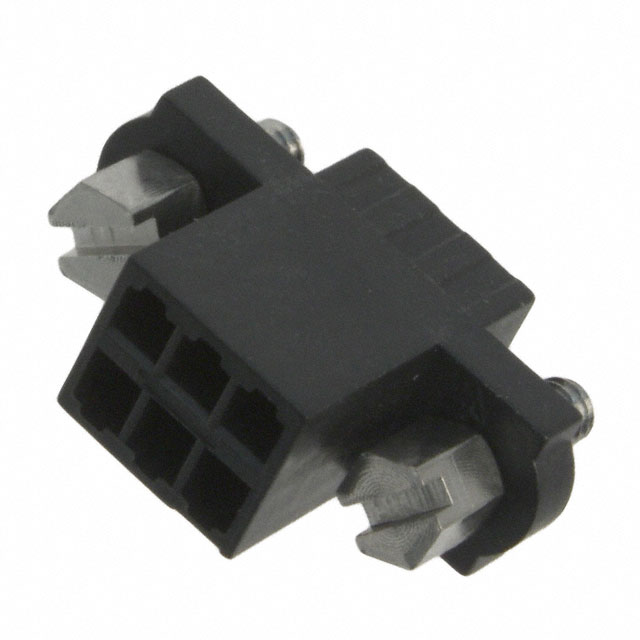

M80-4550698

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Pbfree Code :

yes

Voltage - Rated :

120V

UL Flammability Code :

94V-0

Feature :

Jackscrews

Max Current Rating :

3A

Length :

16mm

REACH SVHC :

No SVHC

Row Spacing :

0.079 (2.00mm)

Pitch :

0.079 2.00mm

Series :

Datamate Trio-Tek

Contact Type :

Female Socket

Contact Resistance :

25mOhm

Current Rating :

3A

Reliability :

COMMERCIAL

Polarization Key :

POLARIZED HOUSING

RoHS Status :

ROHS3 Compliant

Additional Feature :

RoHS Compliant

Connector Type :

Receptacle

Note :

Contacts Not Included

Radiation Hardening :

No

Color :

Black

Total Number of Contacts :

6

Mount :

Free Hanging

Contact Termination :

Crimp

Body/Shell Style :

PLUG

Housing Material :

Polyamide

Number of Positions :

6

Wire Gauge (Min) :

28 AWG

Packaging :

Bulk

Body Depth :

0.437 inch

Option :

GENERAL PURPOSE

Orientation :

Straight

Max Operating Temperature :

125°C

Flammability Rating :

UL94 V-0

Filter Feature :

No

IEC Conformance :

No

Durability :

400 Cycles

Reference Standard :

UL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Rated Current (Signal) :

3A

Max Voltage Rating (AC) :

120V

Min Operating Temperature :

-55°C

Mounting Type :

Free Hanging (In-Line)

Contact Material :

Bronze

Factory Lead Time :

13 Weeks

Number of Rows :

2

Voltage - Rated AC :

120V

MIL Conformance :

No

Contact Gender :

Male

Contact Plating :

Gold

Wire Gauge (Max) :

22 AWG

Published :

2003

DIN Conformance :

No

Insulation Resistance :

100MOhm

Mixed Contacts :

No
