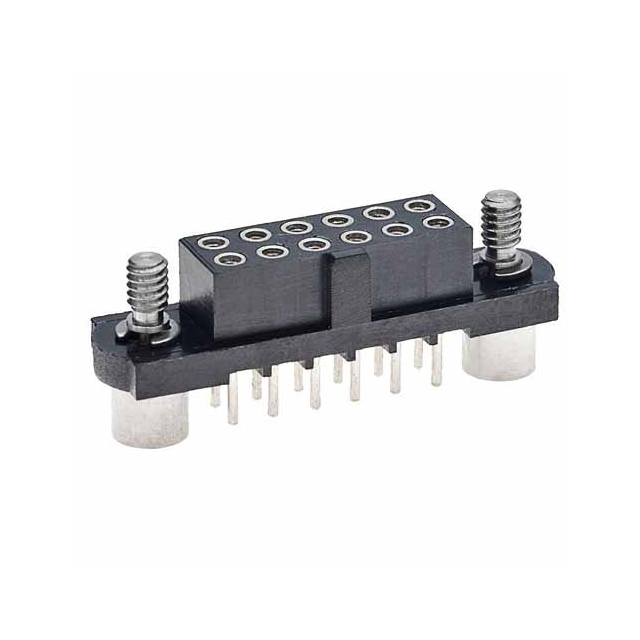

M80-4202401

Manufacturer :

Harwin

Product Category :

Headers, Receptacles, Female Sockets

Number Of PCB Rows :

2

Contact Finish - Post :

Tin-Lead

Durability :

500 Cycles

Insulation Resistance :

100000000Ohm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Connector Type :

Receptacle

Fastening Type :

Screw Lock

Contact Finish - Mating :

Gold

Contact Finish Thickness - Post :

137.8μin 3.50μm

Reach Compliance Code :

not_compliant

UL Flammability Code :

94V-0

Insulation Height :

0.205 5.20mm

Length - Termination :

0.118 inch

Style :

Board to Board or Cable

Packaging :

Tube

Applications :

Automotive, General Purpose, Military

Contact Type :

Female Socket

DIN Conformance :

No

IEC Conformance :

No

Stack Height (Mating) :

7.3mm 7.55mm

HTS Code :

8536.69.40.40

Additional Feature :

PANEL MOUNTABLE

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

JESD-609 Code :

e0

Body Length or Diameter :

1.339 inch

Reliability :

COMMERCIAL

Published :

2010

Feature :

Jackscrews, Mating Flange, Mounting Flange, Polarizing Key

Termination :

Solder

Number of Positions Loaded :

All

Reference Standard :

UL

Contact Finish Thickness - Mating :

12.0μin 0.30μm

Number of Positions :

24

Contact Length - Post :

0.118 3.00mm

Pbfree Code :

No

Material Flammability Rating :

UL94 V-0

Mixed Contacts :

No

Filter Feature :

No

Board Mounting Option :

HOLE .138-.163

Number of Conductors :

ONE

Row Spacing - Mating :

0.079 (2.00mm)

Mating Contact Pitch :

0.079 inch

Number of Rows :

2

Voltage - Rated :

120V

Contact Shape :

Circular

Insulation Color :

Black

Contact Material :

BERYLLIUM COPPER

Series :

Datamate J-Tek

PCB Contact Pattern :

RECTANGULAR

Pitch - Mating :

0.079 2.00mm

Plating Thickness :

11μin

Operating Temperature :

-55°C~125°C

RoHS Status :

ROHS3 Compliant

Mounting Type :

Through Hole

MIL Conformance :

No
