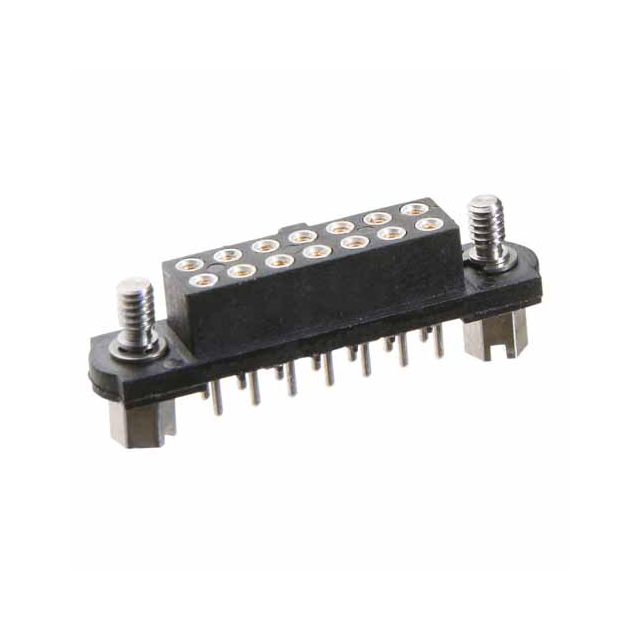

M80-4002605

Manufacturer :

Harwin

Product Category :

Headers, Receptacles, Female Sockets

Insulation Color :

Black

IEC Conformance :

No

Series :

Datamate J-Tek

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch - Mating :

0.079 2.00mm

Feature :

Jackscrews, Mating Flange, Mounting Flange, Polarizing Key

RoHS Status :

ROHS3 Compliant

Number of Positions Loaded :

All

Mating Contact Pitch :

0.079 inch

Reference Standard :

UL

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Contact Finish Thickness - Post :

10.0μin 0.25μm

Contact Finish - Mating :

Gold

Length - Termination :

0.118 inch

Insulation Resistance :

100000000Ohm

Pbfree Code :

yes

HTS Code :

8536.69.40.40

Applications :

Automotive, General Purpose, Military

Mounting Type :

Through Hole

Durability :

500 Cycles

Termination :

Solder

Number Of PCB Rows :

2

Contact Length - Post :

0.118 3.00mm

ECCN Code :

EAR99

Material Flammability Rating :

UL94 V-0

Connector Type :

Receptacle

Packaging :

Tube

Reach Compliance Code :

not_compliant

Voltage - Rated :

120V

Contact Type :

Female Socket

Additional Feature :

PANEL MOUNTABLE

PCB Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Insulation Height :

0.205 5.20mm

Row Spacing - Mating :

0.079 (2.00mm)

Factory Lead Time :

9 Weeks

Body Length or Diameter :

1.417 inch

Contact Finish Thickness - Mating :

12.0μin 0.30μm

Plating Thickness :

11μin

UL Flammability Code :

94V-0

Operating Temperature :

-55°C~125°C

Stack Height (Mating) :

7.3mm 7.55mm

Mixed Contacts :

No

Number of Positions :

26

Published :

2010

Number of Rows :

2

Contact Shape :

Circular

Number of Conductors :

ONE

JESD-609 Code :

e4

Filter Feature :

No

Fastening Type :

Screw Lock

Style :

Board to Board or Cable

MIL Conformance :

No

Contact Material :

BERYLLIUM COPPER

DIN Conformance :

No
