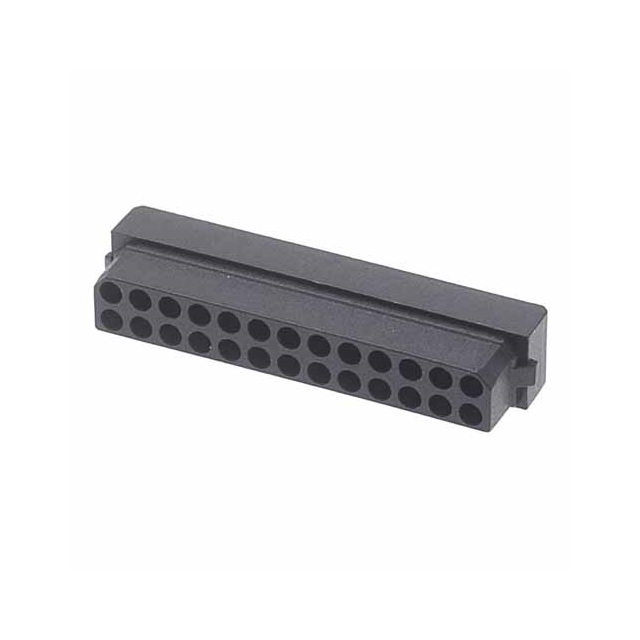

M80-1032698S

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Packaging :

Tube

Contact Material :

NOT SPECIFIED

Connector Type :

Receptacle

Max Operating Temperature :

125°C

Reference Standard :

UL

Housing Material :

Polyester

HTS Code :

8536.69.40.40

Series :

Datamate L-Tek

Contact Design :

PREASSEM CONN

Reliability :

COMMERCIAL

Total Number of Contacts :

26

Additional Feature :

RoHS Compliant

Option :

GENERAL PURPOSE

Factory Lead Time :

4 Weeks

Contact Termination :

Crimp

Row Spacing :

0.079 (2.00mm)

Mounting Type :

Free Hanging (In-Line)

RoHS Status :

ROHS3 Compliant

UL Flammability Code :

94V-0

Number of Positions :

26

MIL Conformance :

No

Mounting Option 1 :

LOCKING

DIN Conformance :

No

ECCN Code :

EAR99

Depth :

7.55mm

Pitch :

0.079 2.00mm

Length :

29mm

Color :

Black

Contact Type :

Female Socket

Orientation :

Straight

Filter Feature :

No

Number of Rows :

2

Published :

2016

Note :

Contacts Not Included

Min Operating Temperature :

-55°C

Body/Shell Style :

PLUG

IEC Conformance :

No

Fastening Type :

Latch Holder

Pbfree Code :

yes

Max Current Rating :

3A

Contact Finish - Mating :

NOT SPECIFIED

Mixed Contacts :

No
