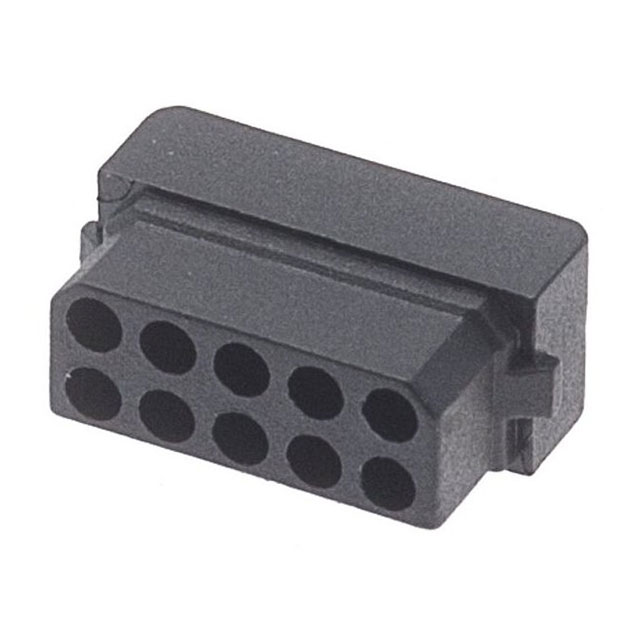

M80-1031098S

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Length :

12mm

Material :

Glass, Thermoplastic

Insulation Resistance :

100MOhm

UL Flammability Code :

94V-0

REACH SVHC :

No SVHC

Total Number of Contacts :

10

Voltage - Rated DC :

120V

Body/Shell Style :

PLUG

Depth :

7.55mm

IEC Conformance :

No

Contact Type :

Female Socket

Number of Positions :

10

Number of Rows :

2

DIN Conformance :

No

Pitch :

0.079 2.00mm

Series :

Datamate L-Tek

Housing Material :

Polyester

Mixed Contacts :

No

Contact Termination :

Crimp

Published :

2006

Row Spacing :

0.079 (2.00mm)

MIL Conformance :

No

Reliability :

COMMERCIAL

Additional Feature :

RoHS Compliant

Current Rating :

3.3A

Contact Gender :

FEMALE

Working Voltage :

120V

Radiation Hardening :

No

Flammability Rating :

UL94 V-0

Connector Type :

Receptacle

Voltage - Rated AC :

120V

Orientation :

Straight

Option :

GENERAL PURPOSE

Factory Lead Time :

9 Weeks

Color :

Black

Filter Feature :

No

Pbfree Code :

yes

Packaging :

Bulk

Note :

Contacts Not Included

Mounting Type :

Free Hanging (In-Line)

Fastening Type :

Latch Holder

Width :

5.4mm

Moisture Sensitivity Level (MSL) :

Not Applicable

Reference Standard :

UL

RoHS Status :

ROHS3 Compliant

Mount :

CABLE
