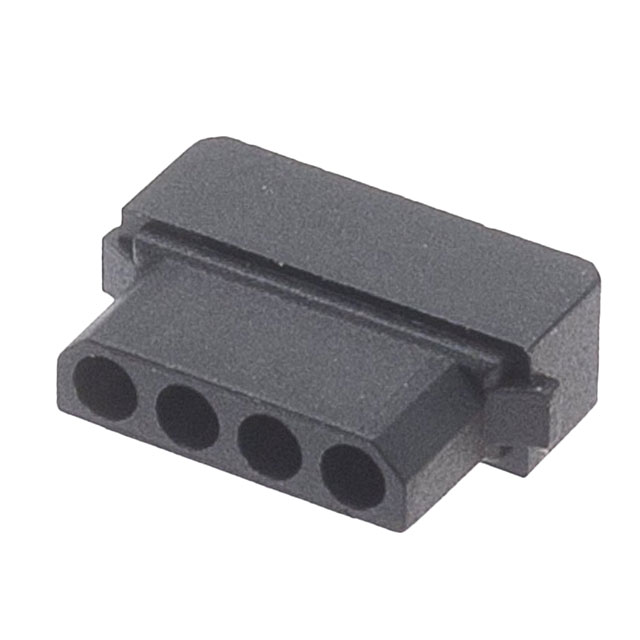

M80-1010498S

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Length :

11mm

Insulation Resistance :

100MOhm

Factory Lead Time :

9 Weeks

Connector Type :

Receptacle

Fastening Type :

Latch Holder

Mixed Contacts :

No

IEC Conformance :

No

Durability :

500 Cycles

Voltage - Rated AC :

120V

Housing Material :

Polyester

Body/Shell Style :

PLUG

Contact Type :

Female Socket

Radiation Hardening :

No

Insertion Force-Max :

2.78 N

Additional Feature :

RoHS Compliant

Series :

Datamate L-Tek

Color :

Black

Pitch :

0.079 2.00mm

Total Number of Contacts :

4

MIL Conformance :

No

Reference Standard :

UL

Mounting Type :

Free Hanging (In-Line)

Current Rating :

3.3A

Rated Current (Signal) :

3A

Option :

GENERAL PURPOSE

Orientation :

Straight

DIN Conformance :

No

Packaging :

Bulk

RoHS Status :

ROHS3 Compliant

Reliability :

COMMERCIAL

Number of Positions :

4

Material :

Glass, Thermoplastic

Contact Design :

PREASSEM CONN

Filter Feature :

No

REACH SVHC :

No SVHC

Working Voltage :

120V

Flammability Rating :

UL94 V-0

Width :

3.4mm

Operating Temperature (Min) :

-55°C

Note :

Contacts Not Included

Contact Termination :

Crimp

Voltage - Rated DC :

120V

Moisture Sensitivity Level (MSL) :

Not Applicable

Contact Resistance :

25mOhm

Depth :

7.55mm

Package / Case :

SIL

Number of Rows :

1

Published :

2002
