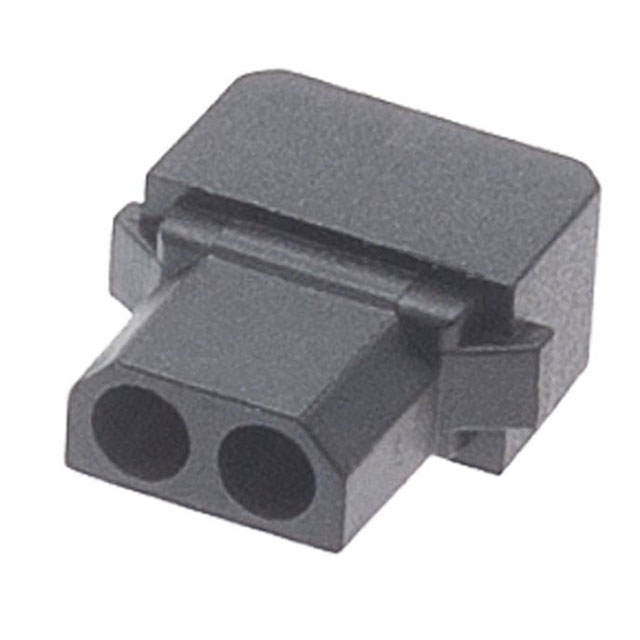

M80-1010298S

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Pitch :

0.079 2.00mm

Factory Lead Time :

9 Weeks

Total Number of Contacts :

2

Working Voltage :

120V

Contact Design :

PREASSEM CONN

UL Flammability Code :

94V-0

Note :

Contacts Not Included

Mixed Contacts :

No

Package / Case :

SIL

Durability :

500 Cycles

REACH SVHC :

No SVHC

Packaging :

Bulk

Contact Termination :

Crimp

Voltage - Rated AC :

120V

Voltage - Rated DC :

120V

Series :

Datamate L-Tek

Reference Standard :

UL

Number of Positions :

2

Connector Type :

Receptacle

Housing Material :

PET

Moisture Sensitivity Level (MSL) :

Not Applicable

DIN Conformance :

No

IEC Conformance :

No

RoHS Status :

ROHS3 Compliant

Orientation :

Straight

Reliability :

COMMERCIAL

Depth :

7.55mm

Length :

6mm

Insulation Resistance :

100MOhm

MIL Conformance :

No

Number of Rows :

1

Body/Shell Style :

PLUG

Contact Finish - Mating :

NOT SPECIFIED

Fastening Type :

Latch Holder

Flammability Rating :

UL94 V-0

Contact Type :

Female Socket

Additional Feature :

RoHS Compliant

Material :

Glass, Thermoplastic

Mounting Type :

Free Hanging (In-Line)

Option :

GENERAL PURPOSE

Color :

Black

Rated Current (Signal) :

3A

Current Rating :

3.3A

Filter Feature :

No

Operating Temperature (Min) :

-55°C

Published :

2002

Width :

3.4mm
