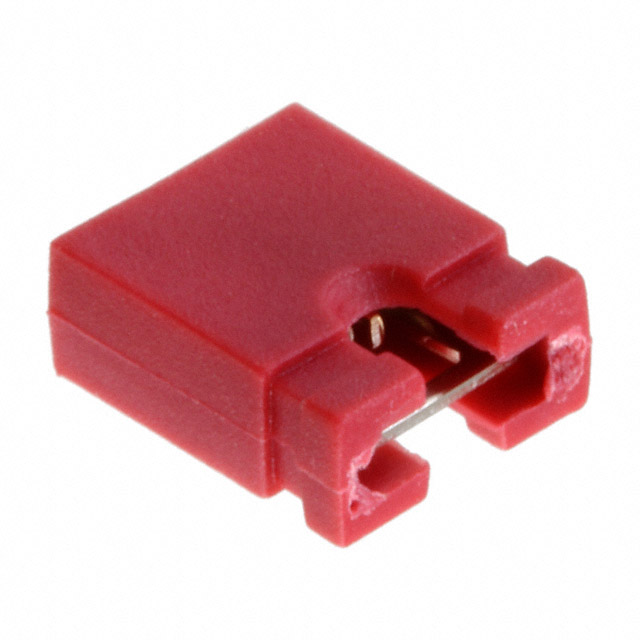

M7581-05
- Mfr.Part #
- M7581-05
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- JUMPER SKT OPEN TOP RED
- Stock
- 70,400
- In Stock :
- 70,400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Shunts, Jumpers
- RoHS Status :
- ROHS3 Compliant
- Body Breadth :
- 0.094 inch
- Contact Material :
- Bronze
- Number of Rows :
- 1
- Contact Finish :
- Gold
- Number of Conductors :
- ONE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Radiation Hardening :
- No
- Material Flammability Rating :
- UL94 V-0
- Rated Current (Signal) :
- 1A
- Reference Standard :
- UL
- Pbfree Code :
- yes
- Color :
- Red
- Dielectric Withstanding Voltage :
- 500VAC V
- Reliability :
- COMMERCIAL
- Insulation Resistance :
- 5GOhm
- Gender :
- Female Sockets
- Current Rating :
- 1A
- Published :
- 2009
- Contact Pattern :
- RECTANGULAR
- Pitch :
- 0.100 2.54mm
- Body/Shell Style :
- PLUG
- Orientation :
- Straight
- Length :
- 6mm
- Min Operating Temperature :
- -55°C
- Contact Style :
- SQ PIN-SKT
- Material :
- Glass, Polybutylene
- Number of Positions or Pins (Grid) :
- 2 (1 x 2)
- Depth :
- 2.4mm
- Flammability Rating :
- UL94 V-0
- Contact Gender :
- FEMALE
- Number of Contacts :
- 2
- Height :
- 0.236 6.00mm
- Packaging :
- Bulk
- Factory Lead Time :
- 14 Weeks
- ECCN Code :
- EAR99
- Series :
- M75
- Type :
- Open Top
- REACH SVHC :
- No SVHC
- Contact Resistance :
- 20mOhm
- Housing Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Max Operating Temperature :
- 105°C
- Max Current Rating :
- 1A
- Datasheets
- M7581-05
