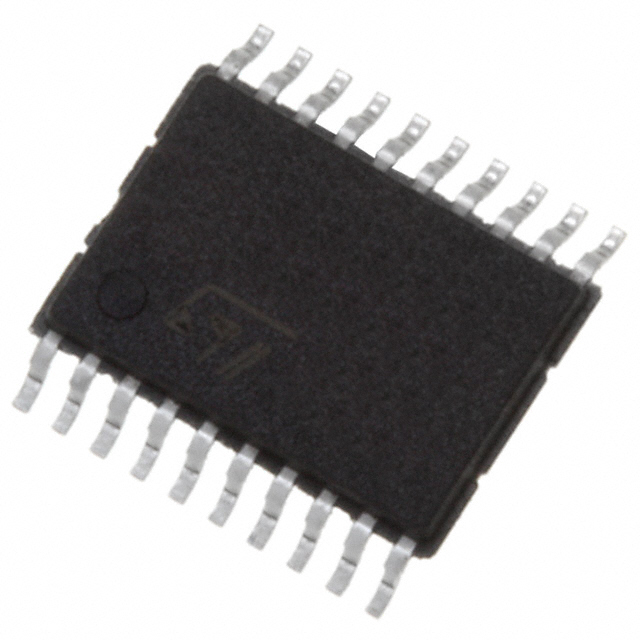

M74HC688TTR

Manufacturer :

STMicroelectronics

Product Category :

Comparators

Supply Voltage :

4.5V

Peak Reflow Temperature (Cel) :

260

Current - Output High, Low :

5.2mA 5.2mA

Quiescent Current :

4μA

Output Function :

A=B

Lead Free :

Lead Free

Mounting Type :

Surface Mount

Package / Case :

20-TFSOP (0.173, 4.40mm Width)

Number of Bits :

8

Packaging :

Tape and Reel (TR)

Turn On Delay Time :

29 ns

Terminal Finish :

NICKEL PALLADIUM GOLD

Operating Temperature :

-55°C~125°C

Type :

IDENTITY COMPARATOR

Time@Peak Reflow Temperature-Max (s) :

40

Width :

4.4mm

Output :

Active Low

Series :

74HC

Supply Voltage-Max (Vsup) :

6V

Supply Voltage-Min (Vsup) :

2V

Number of Pins :

20

Radiation Hardening :

No

Number of Functions :

1

JESD-609 Code :

e4

RoHS Status :

ROHS3 Compliant

Family :

HC/UH

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Number of Terminations :

20

Power Supplies :

2/6V

Max Propagation Delay @ V, Max CL :

29ns @ 6V, 50pF

Voltage - Supply :

2V~6V

Base Part Number :

M74HC68

Propagation Delay :

29 ns

Terminal Form :

Gull wing

Pbfree Code :

yes

Terminal Pitch :

0.65mm

Pin Count :

20

Length :

6.5mm

Mount :

Surface Mount

Height Seated (Max) :

1.2mm

Terminal Position :

Dual

Polarity :

Inverting
