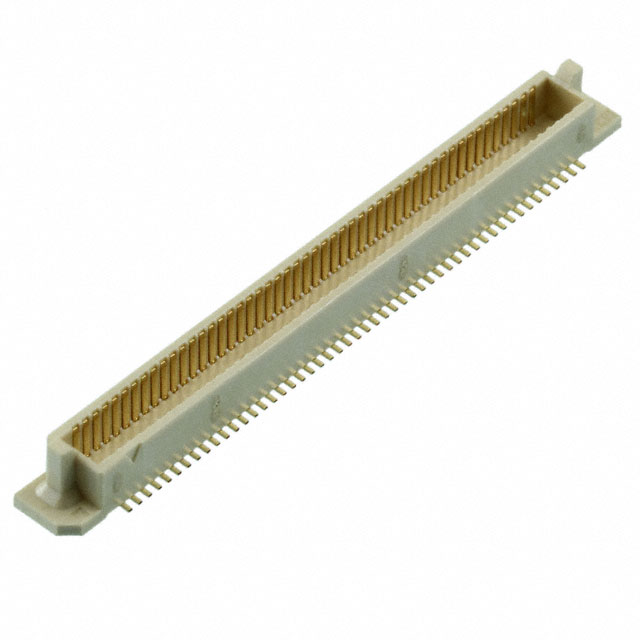

M60-6045045
- Mfr.Part #
- M60-6045045
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 100POS SMD GOLD
- Stock
- 28,558
- In Stock :
- 28,558
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Voltage - Rated :
- 100V
- Factory Lead Time :
- 15 Weeks
- Contact Style :
- BELLOWED TYPE
- Number of Positions :
- 100
- MIL Conformance :
- No
- Depth :
- 4.35mm
- UL Flammability Code :
- 94V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reliability :
- COMMERCIAL
- Height Above Board :
- 0.189 4.80mm
- Durability :
- 30 Cycles
- Housing Material :
- Polymer
- Flammability Rating :
- UL94 V-0
- Stack Height (Mating) :
- 5mm 7mm
- Termination :
- Solder
- Voltage - Rated AC :
- 100V
- Length :
- 47.8mm
- Mounting Type :
- Surface Mount
- Published :
- 2002
- Current Rating :
- 500mA
- Orientation :
- Straight
- Packaging :
- Tube
- Radiation Hardening :
- No
- Width :
- 44.8mm
- RoHS Status :
- ROHS3 Compliant
- Option :
- GENERAL PURPOSE
- Pbfree Code :
- yes
- Min Operating Temperature :
- -55°C
- Insulation Material :
- Polyester
- Lead Pitch :
- 800μm
- Rated Current (Signal) :
- 0.5A
- Body Breadth :
- 0.171 inch
- JESD-609 Code :
- e4
- Body/Shell Style :
- Socket
- Total Number of Contacts :
- 100
- Number of Rows :
- 2
- Contact Finish :
- Gold
- Filter Feature :
- No
- Max Current Rating :
- 500mA
- Feature :
- Board Guide
- Max Voltage Rating (AC) :
- 100V
- Additional Feature :
- POLARISED
- Dielectric Withstanding Voltage :
- 300VAC V
- Pitch :
- 0.031 0.80mm
- REACH SVHC :
- No SVHC
- Contact Pattern :
- RECTANGULAR
- Reference Standard :
- UL
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Mount :
- Surface Mount
- Contact Resistance :
- 40mOhm
- Mixed Contacts :
- No
- DIN Conformance :
- No
- Contact Finish Thickness :
- 2.00μin 0.051μm
- Gender :
- Receptacle
- Series :
- M60
- Connector Type :
- Receptacle, Outer Shroud Contacts
- Number of Conductors :
- ONE
- Insulation Resistance :
- 100MOhm
- Number Of PCB Rows :
- 2
- PCB Contact Pattern :
- RECTANGULAR
- Contact Material :
- Bronze
- IEC Conformance :
- No
- Max Operating Temperature :
- 100°C
- PCB Contact Row Spacing :
- 4.699 mm
- Datasheets
- M60-6045045
M60-6045045 Documents
Receptacle, Outer Shroud Contacts Tube 2 Rows 0.031 0.80mm Surface Mount 100 Positions M60 Gold Solder Bronze
M60-6045045 Overview
The product is packaged in Receptacle, Outer Shroud Contacts.It has been determined that a Tube case is necessary to package the product.This device is mounted in the Surface Mount position.There is a product in the M60 Series.This can be ensured when the system is in operation by maintaining Board Guide.For mounting this component, a Surface Mount socket is required.When the temperature is below 100°C, it is best to use it.A minimum operating temperature of -55°C is required for this device.To name a few, there is also POLARISED.
