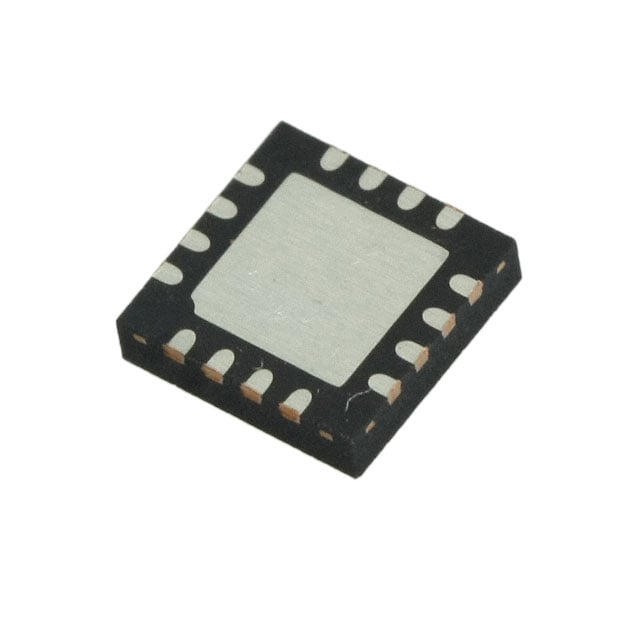

M41T93ZQA6F
Or copy the link below:
- Mfr.Part #
- M41T93ZQA6F
- Manufacturer
- STMicroelectronics
- Package / Case
- 16-VQFN Exposed Pad
- Datasheet
- Download
- Description
- IC RTC CLK/CALENDAR SPI 16-QFN
- Stock
- 18,103
- In Stock ：
- 18,103
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- STMicroelectronics
- Product Category :
- Real Time Clocks
- Power Supplies :
- 2.4/5.5V
- Lead Free :
- Lead Free
- Base Part Number :
- M41T93
- Width :
- 4mm
- Logic Function :
- Clock
- Voltage - Supply :
- 2.38V~5.5V
- Number of Bits :
- 8
- Operating Temperature :
- -40°C~85°C
- Peak Reflow Temperature (Cel) :
- 260
- HTS Code :
- 8542.39.00.01
- Feature :
- Alarm, Leap Year, Square Wave Output, SRAM, Watchdog Timer
- Number of Timers :
- 1
- Supply Voltage :
- 3V
- Terminal Position :
- QUAD
- Non-Volatile Memory :
- 7 b
- Pin Count :
- 16
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Surface Mount
- Time@Peak Reflow Temperature-Max (s) :
- 40
- Height Seated (Max) :
- 1mm
- Type :
- Clock/Calendar
- Voltage - Supply, Battery :
- 1.8V~5.5V
- Terminal Pitch :
- 0.65mm
- Date Format :
- YY-MM-DD-dd
- Length :
- 4mm
- Clock Frequency :
- 10MHz
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 10 Weeks
- Mount :
- Surface Mount
- Number of Pins :
- 16
- JESD-609 Code :
- e3
- Package / Case :
- 16-VQFN Exposed Pad
- Interrupt Capability :
- Y
- Packaging :
- Tape and Reel (TR)
- Number of Terminations :
- 16
- Interface :
- SPI
- Radiation Hardening :
- No
- Time Format :
- HH:MM:SS:hh (24 hr)
- ECCN Code :
- EAR99
- Lifecycle Status :
- ACTIVE (Last Updated: 7 months ago)
- Current - Timekeeping (Max) :
- 10μA @ 5.5V
- Time-Min :
- 1/100SECOND
- Terminal Finish :
- Matte Tin (Sn) - annealed
- Datasheets
- M41T93ZQA6F
Real Time Clocks STMicroelectronics M41T93ZQA6F Overview
The STMicroelectronics M41T93ZQA6F is a state-of-the-art Real Time Clock/Calendar integrated circuit, featuring SPI communication interface housed in a compact 16QFN package. This product is specifically designed to address the needs of high-volume applications requiring accurate time tracking and data logging capabilities. With its robust feature set and reliable performance, the M41T93ZQA6F provides a versatile solution for maintaining precise time in embedded systems. The integration of a real time clock with calendar functionality makes it an indispensable component in many electronic systems, enhancing the overall accuracy and functionality of time-sensitive applications.
M41T93ZQA6F Features
The M41T93ZQA6F Real Time Clock from STMicroelectronics boasts several key features that make it a superior choice for various applications. It offers a serial peripheral interface (SPI) for easy integration into existing systems, low power consumption suitable for battery-operated devices, and an automatic backup battery switch-over, ensuring reliable operation during power interruptions. Additionally, the device includes a programmable alarm and clock output functions, which provide added versatility for complex time management requirements.
M41T93ZQA6F Applications
- Consumer Electronics: Utilized in devices such as smart watches, digital cameras, and smart home devices to manage time-related functions and enhance user interfaces.
- Telecommunication Systems: Provides precise timing for network infrastructure equipment, helping to coordinate data transmission and system operations efficiently.
- Automotive Electronics: Integrated into dashboard electronics and navigation systems to provide accurate time and date information for event logging and GPS data correlation.
- Industrial Systems: Used in data loggers, time-stamped event recorders, and other monitoring equipment to ensure accurate time stamping of events in manufacturing and process control environments.
- Portable Medical Devices: Essential for maintaining accurate time in devices such as wearable health monitors and personal medical alert systems, where time tracking is crucial for medication reminders and health data logging.
