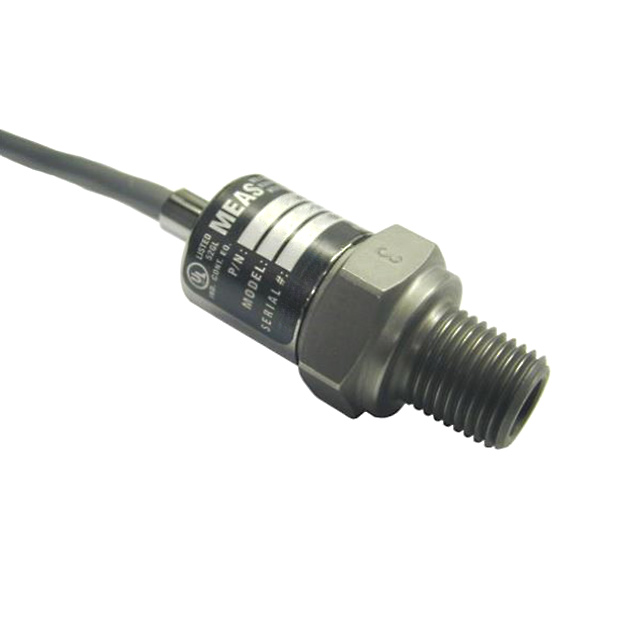

M3021-000005-100PG
Or copy the link below:
- Mfr.Part #
- M3021-000005-100PG
- Manufacturer
- TE Connectivity Measurement Specialties
- Package / Case
- Cylinder, Threaded
- Datasheet
- Download
- Description
- TRANSDUCER 0-100MV 100# PRES
- Stock
- 32
- In Stock ：
- 32
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Measurement Specialties
- Product Category :
- Pressure Sensors, Transducers - Industrial
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- MSP300
- Termination :
- CABLE
- Voltage - Supply :
- 5V
- Operating Pressure :
- 100PSI (689.48kPa)
- Package / Case :
- Cylinder, Threaded
- Accuracy :
- ±1%
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Output Type :
- Analog Voltage
- Port Style :
- Threaded
- Factory Lead Time :
- 16 Weeks
- Termination Style :
- CABLE
- Output :
- 0 mV ~ 100 mV (5V)
- Feature :
- Temperature Compensated
- Maximum Pressure :
- 200PSI (1378.95kPa)
- Output Voltage :
- 20mV
- Radiation Hardening :
- No
- Operating Supply Voltage :
- 5V
- Lead Free :
- Lead Free
- Mount :
- Stud
- Operating Temperature :
- -20°C~85°C
- Port Size :
- Male - 1/4 6.35mm NPT
- Applications :
- Industrial Automation
- Min Operating Temperature :
- -20°C
- Max Operating Temperature :
- 85°C
- Pressure Type :
- Vented Gauge
- RoHS Status :
- RoHS Compliant
- Published :
- 2011
- Datasheets
- M3021-000005-100PG
MSP300 Series Vented Gauge Pressure Sensor Analog Voltage -20°C~85°C 100PSI (689.48kPa) Threaded ±1% 0 mV ~ 100 mV (5V) 5V Temperature Compensated
M3021-000005-100PG Overview
For convenience, this transducer is included in the Cylinder, Threaded package. The temperature of the transducers should be set to -20°C~85°C to ensure reliable performance. The transducers can operate well with a supply voltage of 5V. The maximum operating temperature of the transducers can be reached 85°C. The operating temperature of the transducers cannot be lower than -20°C. The voltage released by the transducers should be 20mV to make it work.
M3021-000005-100PG Features
Moisture Sensitivity Level: 1 (Unlimited)
Package / Case: Cylinder, Threaded
Operating Temperature: -20°C~85°C
MSP300 series
Operating Pressure: 100PSI (689.48kPa)
Operating Supply Voltage: 5V
M3021-000005-100PG Applications
There are a lot of TE Connectivity Measurement Specialties
M3021-000005-100PG Transducers applications.
- General Purpose
- Process Control
- Altitude Control of Drones and Flying Toys
- Mobile Phones
- Virtual Reality and Gaming Equipment
- Indoor/Outdoor Navigation (dead-reckoning, floor/elevator/step detection)
- Vertical velocity monitoring
- Leisure, Sports, and Fitness Activity Identification
- Weather Forecasting
- Hydrogen Storage
