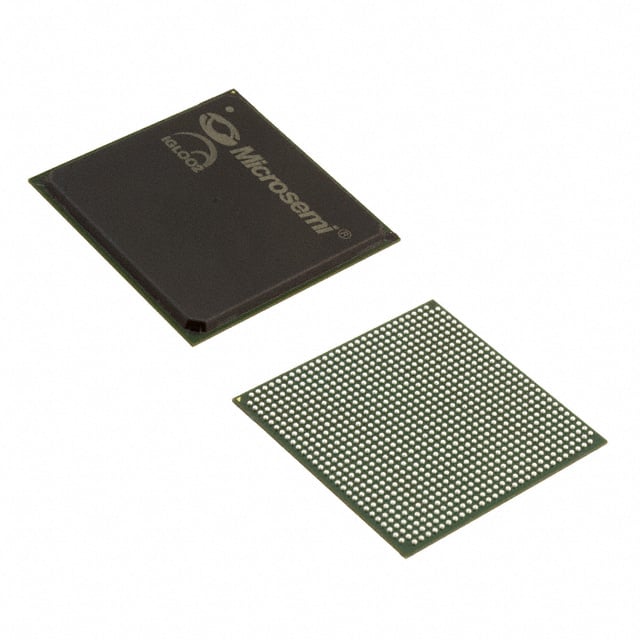

M2GL050TS-1FGG896I

Manufacturer :

Microchip Technology

Product Category :

FPGAs (Field Programmable Gate Array)

Terminal Form :

Ball

RoHS Status :

RoHS Compliant

Mounting Type :

Surface Mount

Voltage - Supply :

1.14V~2.625V

Width :

31mm

Power Supplies :

1.2V

Number of Inputs :

377

Terminal Pitch :

1mm

Series :

IGLOO2

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

HTS Code :

8542.39.00.01

Length :

31mm

Number of I/O :

377

Supply Voltage :

1.2V

Peak Reflow Temperature (Cel) :

260

Package / Case :

896-BGA

Time@Peak Reflow Temperature-Max (s) :

30

Qualification Status :

Not Qualified

Number of Outputs :

377

Operating Temperature :

-40°C~100°C TJ

Lifecycle Status :

IN PRODUCTION (Last Updated: 3 weeks ago)

Surface Mount :

yes

Base Part Number :

M2GL050TS

Terminal Position :

BOTTOM

RAM Size :

228.3kB

Number of Terminations :

896

Number of Logic Elements/Cells :

56340

Programmable Logic Type :

FIELD PROGRAMMABLE GATE ARRAY

Height Seated (Max) :

2.44mm

JESD-30 Code :

S-PBGA-B896

Factory Lead Time :

12 Weeks

Total RAM Bits :

1869824

Packaging :

Tray
