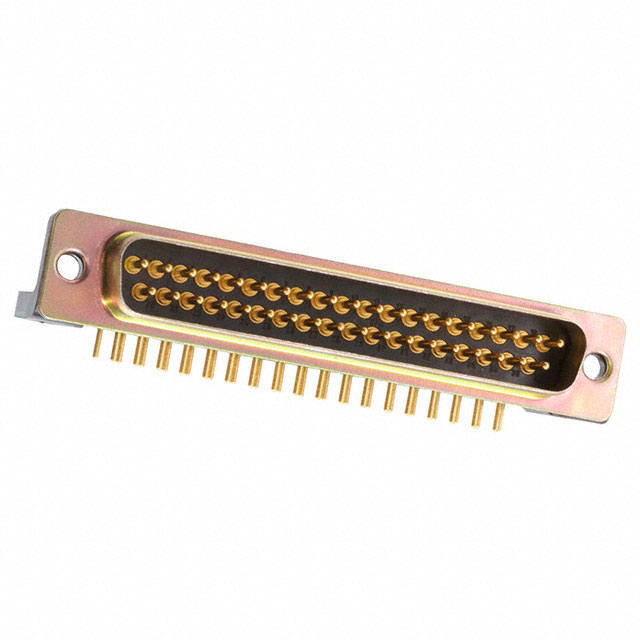

M24308/24-28F
Or copy the link below:
- Mfr.Part #
- M24308/24-28F
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 37POS R/A SOLDER
- Stock
- 104
- In Stock ：
- 104
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Connector Style :
- D-Sub
- Voltage Rating :
- -
- Factory Lead Time :
- 17 Weeks
- Shell Plating :
- Zinc
- Product Type :
- D-Sub MIL Spec Connectors
- RoHS Status :
- Non-RoHS Compliant
- Operating Temperature :
- -55°C~150°C
- Manufacturer :
- ITT Cannon
- Brand :
- ITT Cannon
- Color :
- -
- Series :
- 24308-Style, D*MM
- Flange Feature :
- Housing/Shell (Unthreaded)
- Termination :
- Solder
- Connector Type :
- Plug, Male Pins
- Product Status :
- Active
- Min Operating Temperature :
- -55 °C
- Current Rating (Amps) :
- 7.5A
- Packaging :
- Bulk
- Shell Material, Finish :
- Steel, Yellow Chromate Plated Cadmium
- Mounting Style :
- Panel
- Mounting Type :
- Panel Mount, Through Hole, Right Angle
- Insulation Material :
- Thermoplastic (TP)
- Number of Contacts :
- 37
- RoHS :
- Non-Compliant
- Subcategory :
- MIL-Spec / MIL-Type
- Features :
- Mounting Brackets
- Max Operating Temperature :
- 150 °C
- Number of Rows :
- 2
- Product :
- Connectors
- Product Category :
- D-Sub MIL Spec Connectors
- Shell Size, Connector Layout :
- 4 DC C
- Contact Type :
- Signal
- Package :
- Bulk
- Housing Material :
- Polyester
- Feature :
- Mounting Brackets
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Termination Style :
- Through Hole
- Insulation :
- Insulated
- Published :
- 2011
- Contact Material :
- COPPER ALLOY
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Plating :
- Gold
- Gender :
- Male
- Contact Finish :
- Gold
- Mount :
- Panel, Through Hole
- Wire Gauge :
- 28 AWG to 20 AWG
- Base Product Number :
- M24308/24
- Dielectric Material :
- Polyester
- Ingress Protection :
- -
- Mounting Angle :
- RIGHT ANGLE
- Shell Material :
- Steel
- Number of Positions :
- 37
- Current Rating :
- 7.5A
- Datasheets
- M24308/24-28F
24308-Style, D*MM Series D-Sub Plug, Male Pins 37-Position Male Signal Solder 4 DC C Panel Mount, Through Hole, Right Angle Copper Alloy Gold Steel, Yellow Chromate Plated Cadmium
M24308/24-28F Overview
The connector type Plug, Male Pins refers to the connector type.The device's mounting type is Panel Mount, Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the 24308-Style, D*MM Series of products.It's best to use it when the temperature is below 150 °C.This device must operate at a minimum temperature of -55 °C.Its Mounting Brackets feature renders it more powerful in many ways.The part is mounted by Panel, Through Hole.The device runs in -55°C~150°C Operating Temperature.
M24308/24-28F Features
24308-Style, D*MM series
M24308/24-28F Applications
There are a lot of ITT Cannon, LLC
M24308/24-28F D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
