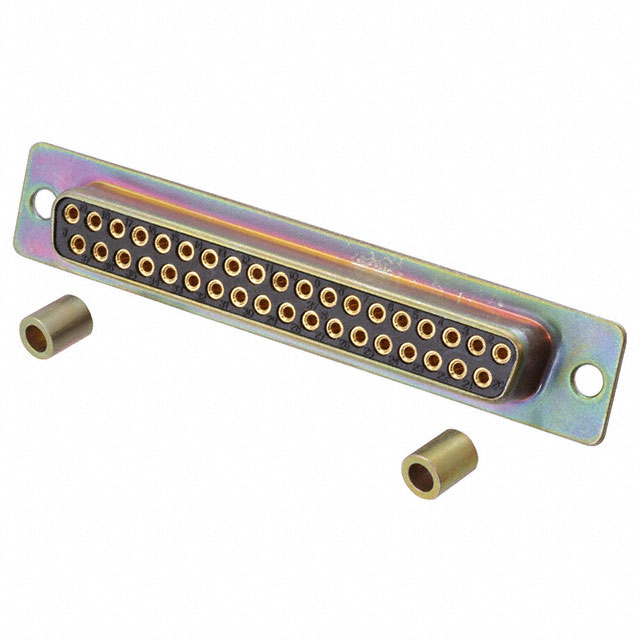

M24308/23-4F
Or copy the link below:
- Mfr.Part #
- M24308/23-4F
- Manufacturer
- ITT Cannon
- Package / Case
- Datasheet
- Download
- Description
- CONN DSUB RCPT 37POS PNL MNT SLD
- Stock
- 41
- In Stock ：
- 41
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ITT Cannon
- Product Category :
- D-Sub Connector Assemblies
- Color :
- Black
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Number Of PCB Rows :
- 2
- Total Number of Contacts :
- 37
- Contact Material :
- Brass
- Contact Type :
- Signal
- Lead Free :
- Contains Lead
- Connector Type :
- Receptacle, Female Sockets
- Shell Material, Finish :
- Steel, Cadmium Plated
- Current Rating (Amps) :
- 5A
- Filter Feature :
- No
- Number of Rows :
- 2
- PCB Contact Pattern :
- STAGGERED
- Published :
- 2005
- Option :
- GENERAL PURPOSE
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 109
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Length - Termination :
- 0.176 inch
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Body Breadth :
- 0.509 inch
- Operating Temperature :
- -55°C~125°C
- Packaging :
- Bulk
- Contact Finish :
- Gold
- Flange Feature :
- Housing/Shell (Unthreaded)
- Reach Compliance Code :
- not_compliant
- Connector Style :
- D-Sub
- Shell Size, Connector Layout :
- 4 DC C
- Mount :
- Through Hole
- Empty Shell :
- No
- Mixed Contacts :
- No
- RoHS Status :
- Non-RoHS Compliant
- Factory Lead Time :
- 14 Weeks
- Mounting Type :
- Through Hole
- Number of Conductors :
- ONE
- Number of Positions :
- 37
- Datasheets
- M24308/23-4F
Military, MIL-DTL-24308, AMPLIMITE 109 Series D-Sub Receptacle, Female Sockets 37-Position Signal Solder 4 DC C Through Hole Brass Gold Steel, Cadmium Plated
M24308/23-4F Overview
The product comes in a package of Receptacle, Female Sockets.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Military, MIL-DTL-24308, AMPLIMITE 109 Series of products.Through Hole mounts the part.There is no operating temperature for the device.
M24308/23-4F Features
Military, MIL-DTL-24308, AMPLIMITE 109 series
M24308/23-4F Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
M24308/23-4F D-Sub Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
